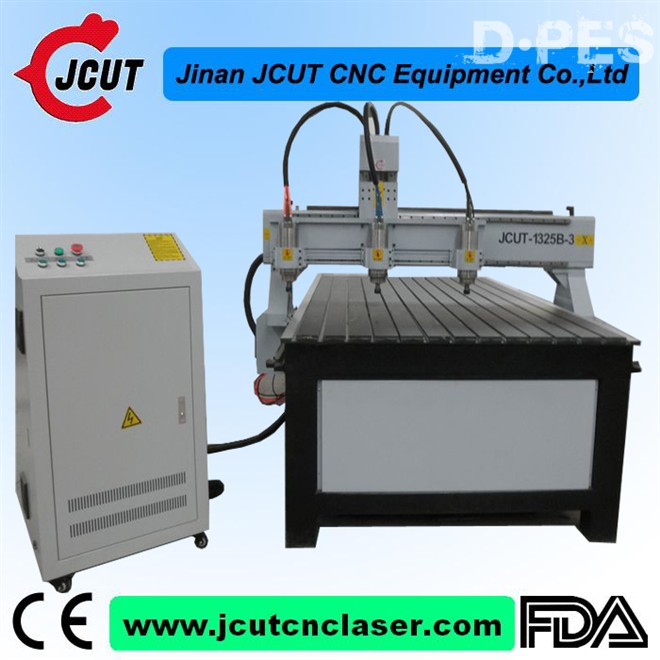

wood cnc router price/3d relief router machine JCUT-1325B-3 (51'x98'x5.9')
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
JCUT-1325B-3
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
0.00-0.00 /
Shippment Port:
Qingdao
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
30 Set/Sets
Delivery Time:
Month
Packaging:
wooden trunk for export
Mr. Li Pengfei



Send a Message to this Supplier

Supplier Details
Product Details Company Profile

wood cnc router price/3d relief router machine   JCUT-1325B-3 (51'x98'x5.9')

Applications:

Can be used on advertisement engraving, advertisement cutting, stone processing cutting, Cu and Al molding cutting, mold manufacturing cutting, wood processing cutting, wood door manufacturing cutting, craft manufacturing cutting, light box cutting, building mold cutting, indoor decoration cutting, wave board processing cutting, light equipment mold processing cutting, sign and mark manufacturing cutting,

Acryl board processing cutting, stamp cutting



1325B-3

.jpgFeatures: Three 3kw water cooling spindle

1) Machine body: whole weld steel tube

2) Guideway:XYZ-axis use linear guideway

3) Driving mode:Gear

4) Work dimensions: 1,300/3mm x 2500mm x 150mm

5) Z-axis working area: 150mm

6) Max. Feeding height: 120mm or bigger

7) Cut thickness of material: ≤40mm

8) Max. Speed: 25,000mm/min

9) Working speed: 0 - 8,000mm/min

10) Mechanical precision: 0.01mm

11) Software: type 3 software, Artcut software, Artcam software

12) Max. Power consumption: 3kW

13) Power source: AC 220/50/60Hz (or 110v/60HZ)

14) Driver type: stepper motor(XZ-85BYG, Y-axis use two 85BYG motors)

15) Memory: without or (DSP)

16) Spindle: 3x 3kW water-cooled spindle

17) Spindle speed: 0 - 24,000rpm/min

18) Blade diameter:3.175mm, 4mm,6mm (or 8mm,10mm,12mm, 12.7mm)

19) Control system: (NCSTUDIO) or DSP (USB interface)

20) Command: G code, u00, mmg, plt

21) Running circumstance temperature: 0 - 45°C

22) Relative humidity: 30% - 75%



Packing:

Pack dimensions: 2,000mm x 3200mm x 1,700mm

Net weight: 950kg (with bracket)

Gross weight: 1000kg
