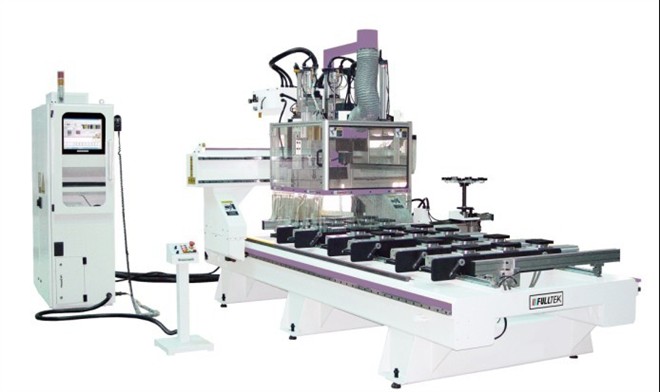

PA-3713 woodworking center
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
PA-3713
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /
Shippment Port:
Payment Terms:
T/T
Show Buyers your Ability to Supply:
Production Capacity:
0
Delivery Time:
Packaging:
Miss. Bella Wang



Send a Message to this Supplier

Product Details Company Profile

Machine specification:
- Rails 1300mm 8pcs
- Pods

135x135x50mm-Fixed 10pcs
135x100x50mm-Fixed 2pcs
135x75x50mm-Rotary 2pcs
135x50x50mm-Rotary 2pcs


- Positioning air cylinder

65mm-Fixed 12pcs
65mm-Movable 9pcs


- Pneumatic clamp set 40~75mm 6pcs
- Panel lifting blades 55mm 8pcs
- Max. working Area 3700×1300mm
- Stroke

X & X g A x is 4000mm
Y Axis 1700mm
Z 1 & Z 2 A x i s 300mm


- Working height 200 mm
- Rapid speed

X & Y Axis 80 M/min.
Z Axis 20 M/min.


- Tool change mode&capacity DRUM type ATC, 8 tools
Aluminum Alloy
- Spindle power 16 HP (12kw)/HSK-63F 1pc 1000 – 24000 RPM
- Vacuum pump power 7.5HP(5.5kw)-160m3/h 1pc

- CNC controller OSAI-PC
- Boring head 7V2H 1pc
