Specification

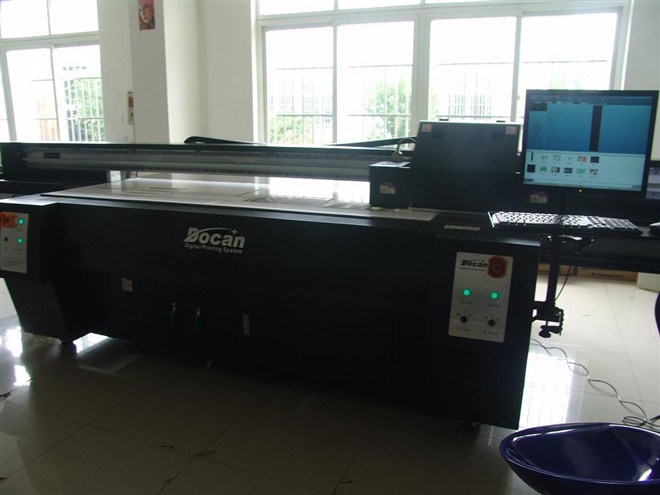

1) UV four colors Flatbed Printer
2) Konica Minolta printhead
3) 360dpi*360dpi-1440dpi*1440dpi
4) C,M,Y,K or C,M,Y,K,LC,LM + White colors
5) CE Certificate
Perfect Quality Along With Competitive Price
Since we are a few manufacturers of UV flatbed printer in China with many years production experience, we can provide the printer with excellent performance & direct price. You will enjoy our one-stop survice.
Higher Speed Plus Higher Resolution
Konica printhead with 512-14PL/42PL nozzle is used to support you with high speed printing and higher resolution(Max resolution can be up to 1440dpi*1440dpi
Ideal Transmission System
USB optical transmission, interference, to avoid printing garbage.
More Application
Application areas includs:Decoration industry, glass industry;Sign industry;Exhibition industry;Leather textile printing industry, and so on.
Printed materials could be:Glass, ceramic tile, ceiling, aluminum sheets, wooden sheets, billboards, acryl sheets, KD board, Plexiglas, foam board & flexible media like wall paper, glistening film, canvas, carpet, leather, paper sheets, etc.
Technical Data
|
General
Info
|
Model
|
UV2512
|
|
Print technology
|
Drop-on-demand Piezo Electric
|
|
Working platform
|
Vacuum or up-down wheels table
|
|
Printhead type
|
JAPAN KM-512-14PL / KM-512-42PL
|
|
Printhead No.
|
4/5/6/7/8/10/16 pcs
|
|
Printhead controls
|
Print head temperature & voltage are adjustable by software
|
|
Printing size
|
2.44m * 1.22m
|
|
Ink type
|
UV curing ink
|
|
Ink Reservoir
|
Refillable on the fly while printing/1000ml
|
|
Loating mode
|
Resto/Servo
|
|
RIP software
|
Photoprint 10
|
|
Drying system
|
UV lamp
|
|
File format
|
TIFF, JPEG, Postscript 3, EPS and PDF
|
|
Resolution
|
360 dpi x 360 dpi 360 dpi x 720 dpi
|
|
720 dpi x 360 dpi 720 dpi x 720 dpi
|
|
720 dpi x 1440 dpi 1440 dpi x 1440 dpi
|
|
Printing Speed
|
In draft mode up than 52 sq.m ( 8 heads )
|
|
In standard mode up than 36 sq.m ( 8 heads )
|
|
In high resolution mode up than 22 sq.m ( 8 heads )
|
|
Ink
|
Ink type
|
UV curing ink
|
|
Printing colors
|
C, M, Y, K, LC, LM, W (4,5,6,7, double 4 colors)
|
|
Printing Assistant System
|
Printing media
(max thickness 55mm )
|
Glass, ceramic tile, ceiling, aluminum sheets, wooden sheets, billboards, acryl sheets, KD board, Plexiglas, foam board, also flexible media like wall paper, glistening film, canvas, carpet, leather, paper sheets, etc.
|
|
Heating system
|
Standard (Front heater, Rear heater, Fan)
|
|
Color retains
|
Outdoor 2 years, indoor 7 years
|
|
Color management
|
ICC based color, adjustment curves, density adjustment
|
|
Printer Info
|
Power supply
|
AC220V-240V 50/60HZ (10%) 16A
|
|
Working conditions
|
Temperature 20-28 degrees, Humidity 40% - 60%
|
|
Dimensions
|
4.52*2.05*1.33m
|
|
Weight
|
1050 kgs
|
|
Packing
|
Outside packing : Packed by solid wooden carton
|
|
Inner packing: sealed with anti-rain & rust plastic bubble film
|
