High speed wood letter/acrylic sheet/paper board/cloth laser cutting machine
high speed laser cutting machine
1'companies looking
for distributors laser mechine
2'wood,acrylic,paper letter sheet cutting
JQ-1530Laser
Machine:
Machine Introduction:
1. RECI brand laser tube---80W, 100W, 150W, 180W optional
2. Stable 3 phases stepper motor(Servo motor is available)
3. CW3000 water chiller for 80W; CW5200 industrial water chiller for laser above 100W
4. Red light pointer, USB interface to make machine more multifunctional
Technical Parameters:
|
JQ-1530 Laser Cutting Machine
|
|
Model NO.
|
JQ-1530 Laser cutting Machine
|
|
Cutting Area
|
1500*3000mm
|
|
Laser Power
|
80W/100W/150W/180W--RECI Brand
|
|
Laser Type
|
CO2 Laser tube
|
|
Cutting Speed
|
0-50000mm/min
|
|
Reposition Accuracy
|
0.01mm
|
|
Power Supply
|
220V, 50HZ or 110V, 60HZ
|
|
Operation Temperature
|
0 - 45°C
|
|
Operation Humidity
|
5 - 95%
|
|
Min. Shaping Character
|
English 1.0x 1.0mm
|
|
Graphic Format Supported
|
PLT,AI,DXF,BMP,DST.etc.
|
|
Software Supported
|
CorelDraw, Photoshop, AutoCAD, Tajima
|
|
Driving System
|
3 phases Stepper Motor or Servo Motor
|
|
Cooling Mode
|
Water-cooling and Protection System
|
|
Net Weight/Gross Weight
|
850KGS/960KGS
|
|
Shipping Dimensions
|
3050*2010*1500mm
|
|
Optional Spare Parts
|
Partical
Up-down Table, Rotary attachment, Red Light Pointer
|
|
Recommended Spare Parts
|
Laser Tube and Lens
|

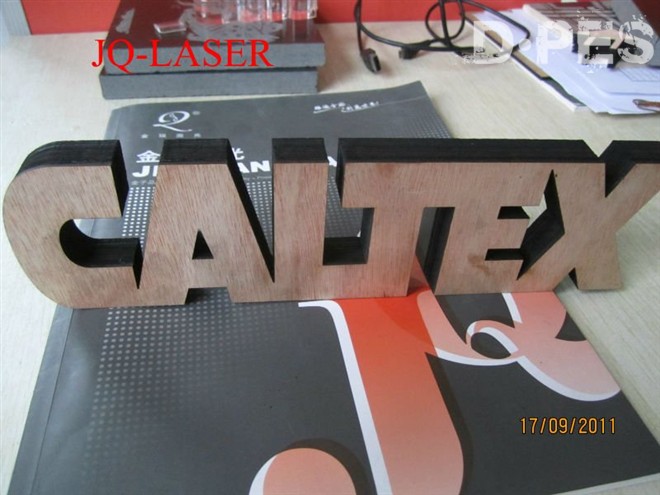

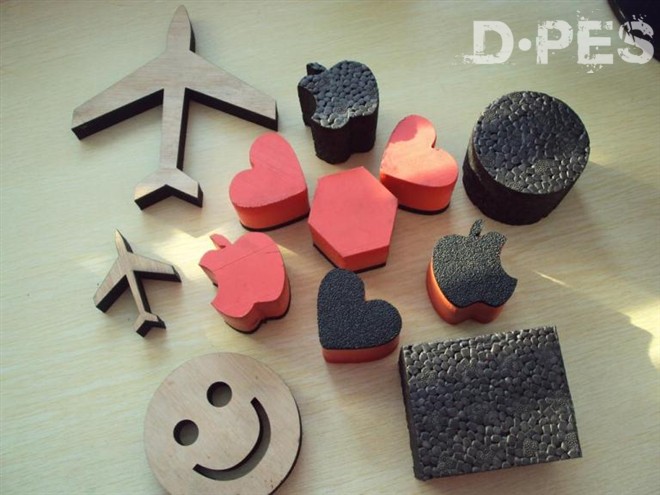

Applicable Materials:
Non-metal materials such as acrylic, wood, MDF, plywood, die board, double color board, rubber, plastic, as well as paper,
leather, fabric, jeans and many other nonmetal materials.
Applicable Industries:
Advertising industry, billboards, artistic gifts, crystal ornaments, paper-cut, bamboo
and wooden product, furniture, garment
and leather, embroidery, decoration and upholster industry.
