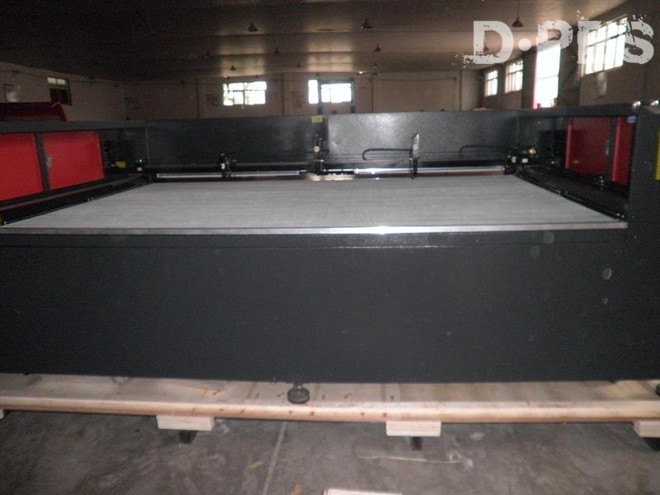

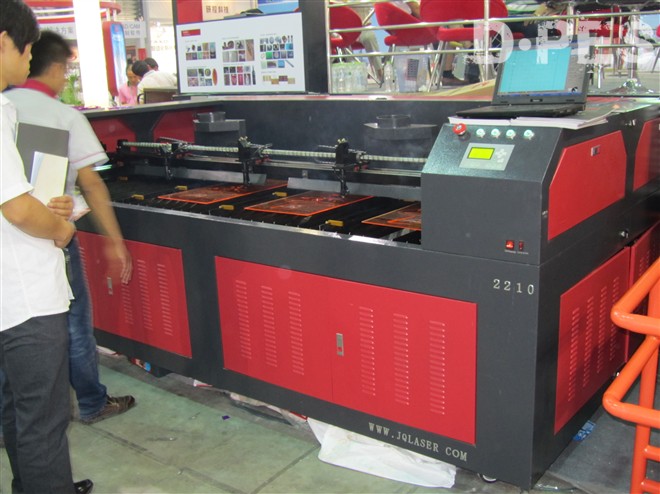

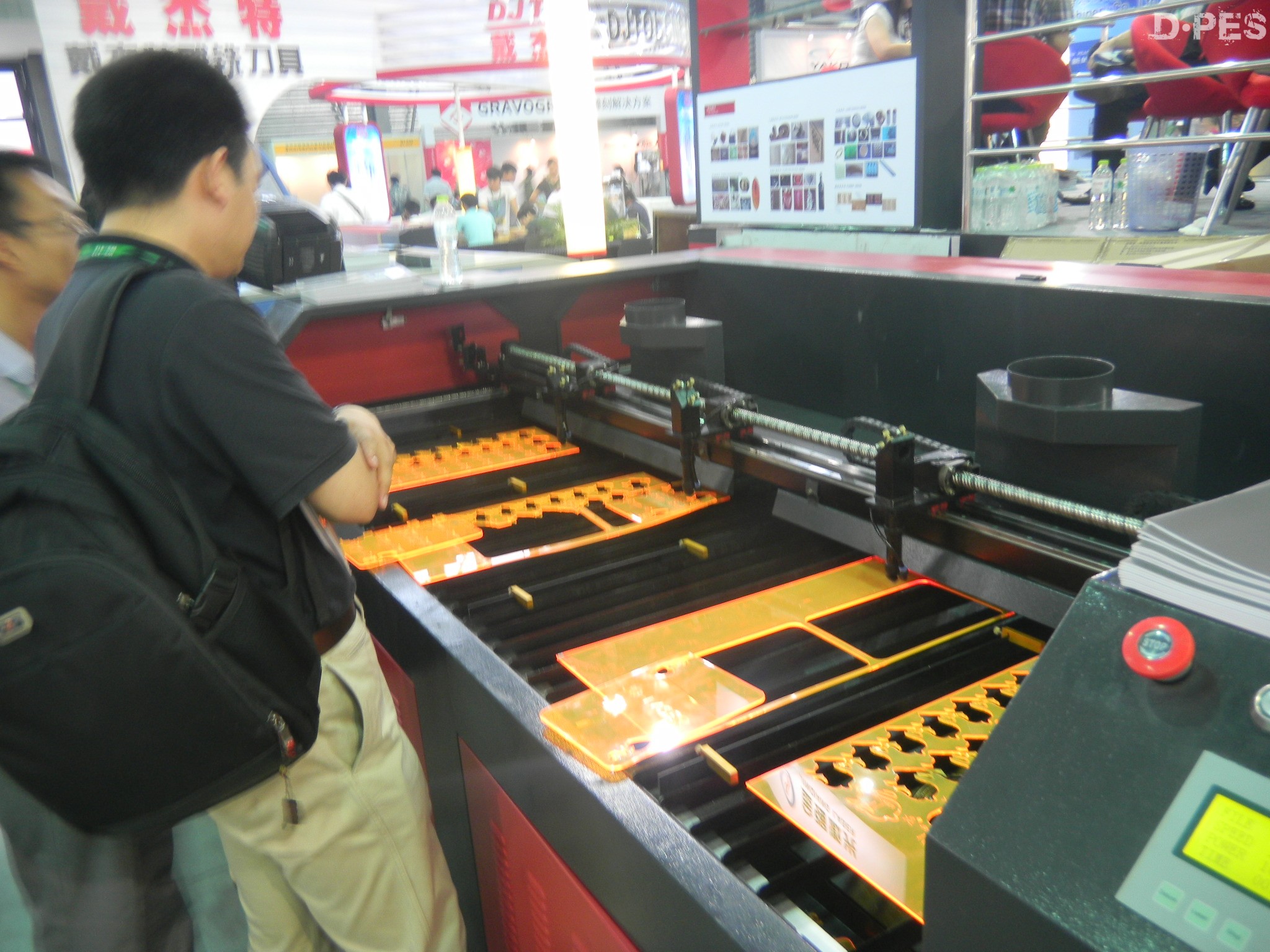

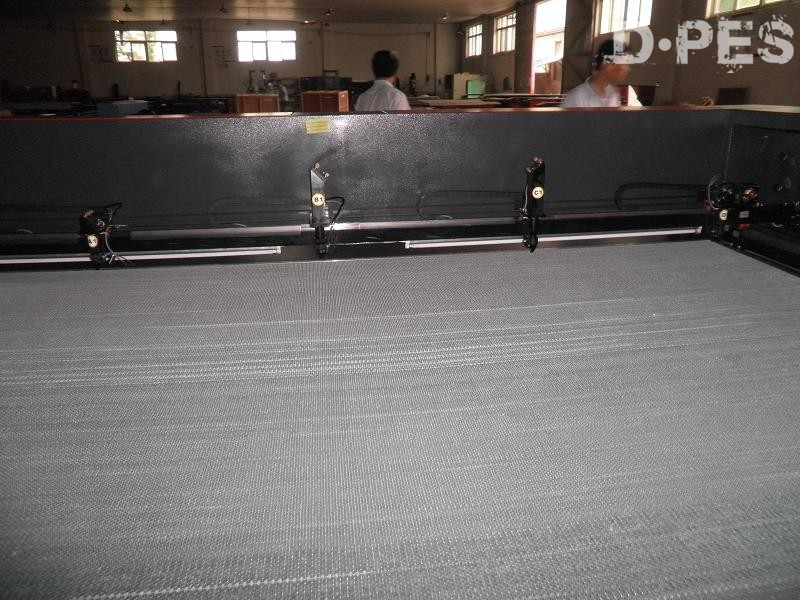

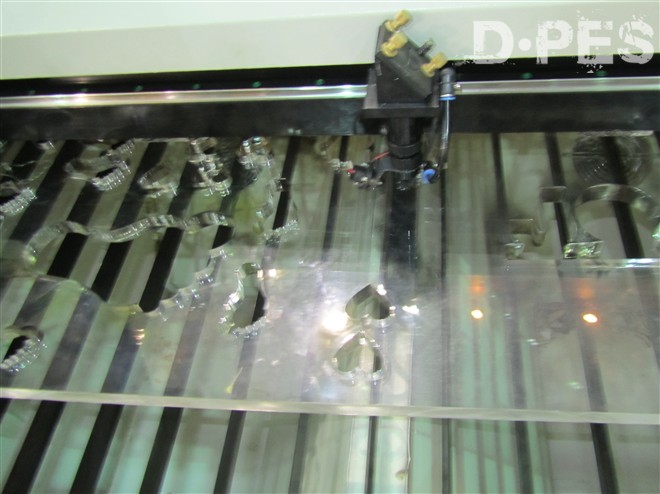

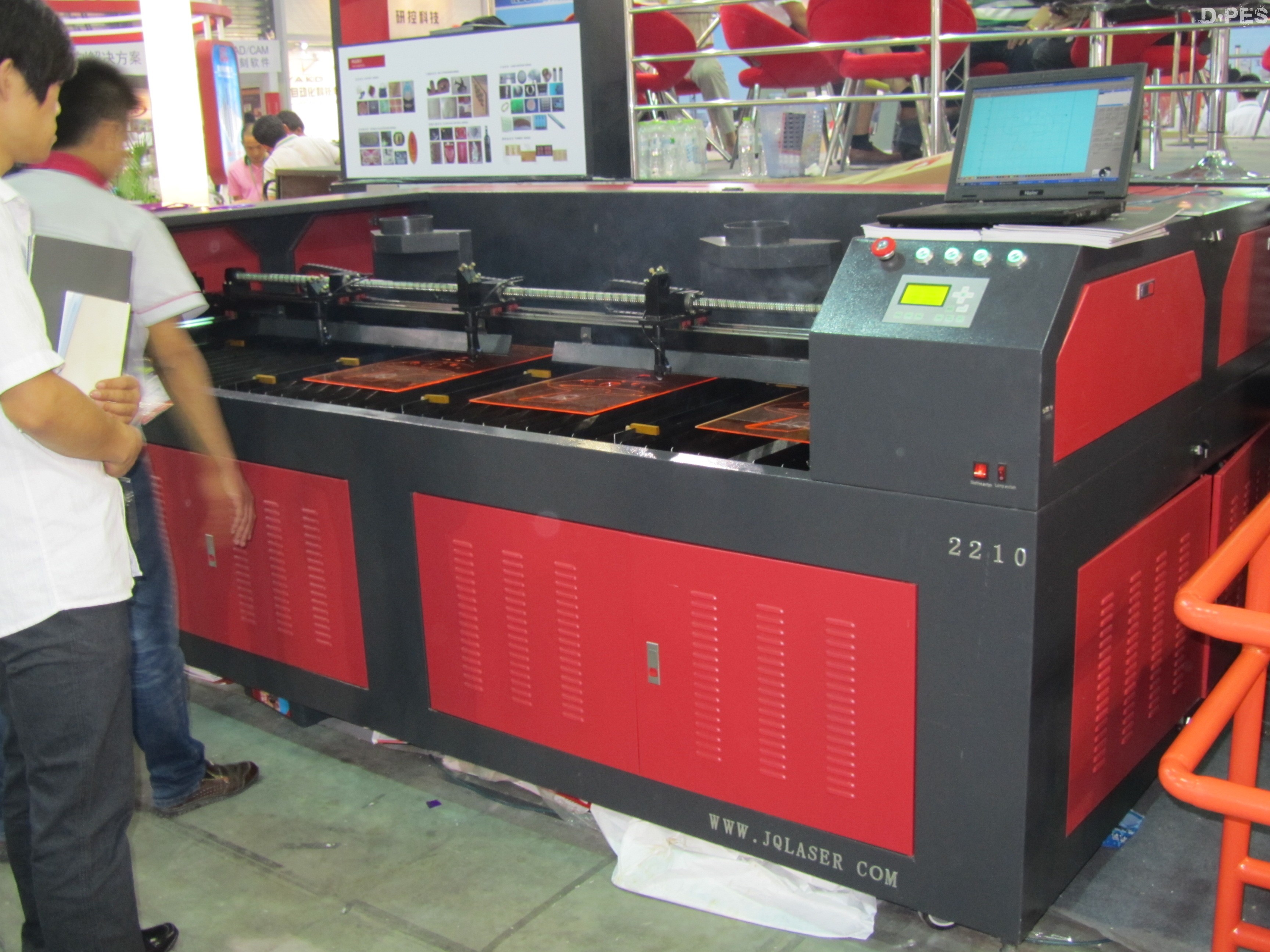

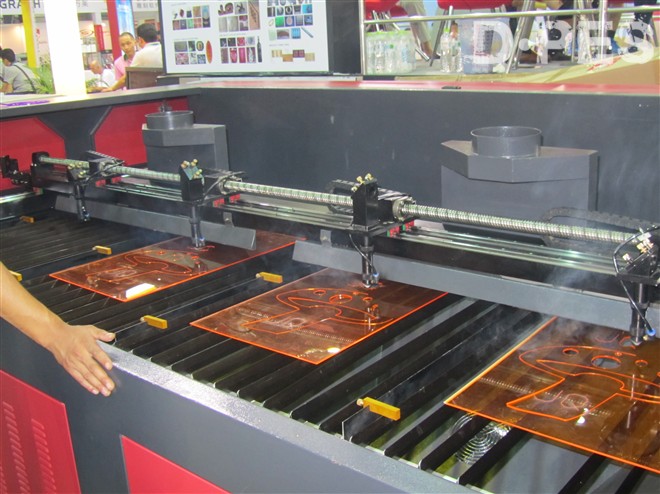

4 heads high efficiency laser cutting machine with ballscrew transmission and servo motor
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
JQ2210
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 6000.00-16000.00 /Set
Shippment Port:
Qingdao, Shanghai, Ningbo
Payment Terms:
L/C ,T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
500 Set/Sets
Delivery Time:
Month
Packaging:
standard export plywood container
Ms. Hong Chanel



Send a Message to this Supplier

Product Details Company Profile

4 heads high efficiency laser cutting machine with ballscrew transmission and servo motor








Product Features

  • Accord with Europe CE standard
  • well-equipped optical system, stable laser power, and long working life
  • Superior Performance of Software
  • Advanced DSP control technology, achieving fast continuous cutting of curves.
  • Not only saves the computer resources, but also promotes the movement performance
  • Imported straight guide rail and high speed step motor and driver

Technical Parameters

Model of Machine

JQ2210

Cutting Area

2200×1000mm

Laser Power

100w

Cutting Speed

0-200mm/s

Engraving Speed

0-1200mm/s

Operating Voltage

AC220V±10%,50HZ

Location Precision

±0.02mm

Operating Temperature

0-45°C

Graphic Format Supported

BMP, HPGL(PLT), JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF, compatible HPG order, support DXF, PLT, BMP and DXT(Tianda embroider software),etc.

Laser Type

CO2 Laser Tube

Working Table

Lift platform up to 1,000mm from the bottom to the top







The working area and laser power can be customized according to requirement























































































Features:



Performance Features



1. Configure stable laser tube.



2. DSP controlling system, rich functions, can affect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.



3. Owns functions of restoring from power off, continuation on break point.



4. Transmit files directly in CorelDraw, AutoCAD etc.



5.Adopt international linear rail, more precision.



6. USB interface possible offline work



We also have Chinese Co2 laser tubes 25W, 40W, 60W, 80W, 100W, 150W, 180W , 200W, 400W or higher,etc and other working areas 1000X600mm, 1200X900mm, 1400X900mm, 1300X900mm, etc for your choice.





The warranty after-sale service



a)         Guarantee for the whole machine: 2 years

b)        Providing around-the-clock professional service to customers, any call for technical help will be handled in 24 hours

c)         International after service department, and our engineers can speak English well, which make communication easy

d)        Free training, free maintenance and free technical support within warranty period

e)         We offer life-long free service in technical upgrading.
