precision plastic/plexiglass Laser Cutting equipment
1) Can both be used in engraving and cutting
can
engrave on : plastic , glass ,leather ,stone ,paper ,arcylic and other
non-metal materials , can cut ,wood (within 20mm thickness ) plastic (
within 30mm thickness) leather ( within 7mm thickness) paper (within
5mm thickness)
2) The working area 1300mm*1800mm (the max size of your material should be smaller than this size )
3) Two years guarantee period
4) The machine were easy operate ( Under the guide of the CD video , you can operate it within half hour )
5) Add more Humanized design (a the machine with separate control box ,and equip the computer ,so no
need to install the software ,and adjust some parameter in the software ,
can use it within the shortest time . b the working table with a simple up-down system ,and the table with many
small balls ,let the worktable become more smooth ,so it will be more
easy to feed the materials into the machine ,and can do the most to
protect the materials does not damage c ,the holder for the rail is adopted 5mm Cast iron technology, so the
machine will become more stable ,and even long time use it will not
change the shape and the precision )
6) Equip some famous brand parts to make sure the quality ( Reci brand laser tube , PMI brand rail . Leetro software .KD Brand high precision stepmotor etc)

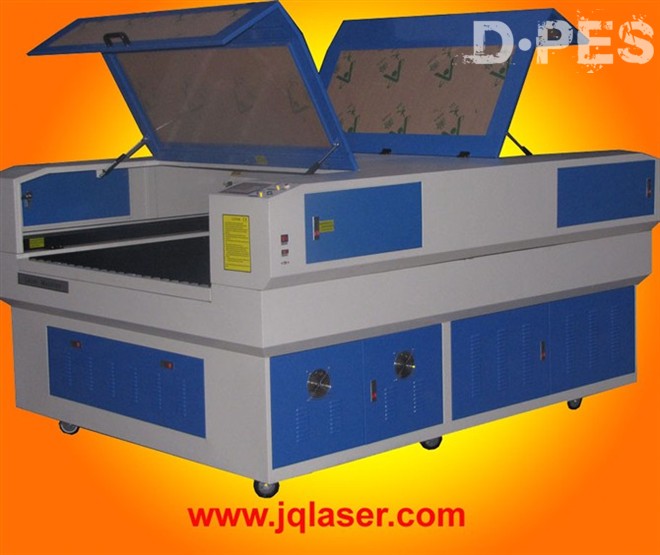

Parameter of JQ-1318 laser cutting machine
Model
|
JQ-1318
|
Working area
|
130cm*180cm (L*W)
|
Laser power
|
100W/150W/180W/200W
|
Laser type
|
CO2 sealed laser tube,water-cooled
|
Cutting speed
|
0-50000mm/min
|
Laser Output
|
1-100%software setting
|
Resetting positioning accuracy
|
≤±0.01mm
|
Power supply
|
220V/50HZ , 110V/60HZ
|
Operating temperature
|
0 - 45°C
|
Operating humidity
|
5 - 95%
|
Min. shaping character
|
English 1.0 x 1.0mm
|
Graphic format supported
|
BMP, PLT, DST, DXF, AI
|
Software supported
|
CorelDraw, PhotoShop, AutoCAD,TAJIMA
|
Driving system
|
3 phases stepper motor
|
Equipment Dimension
|
|
Packing Dimension
|
|
Net Weight
|
550kg
|
Applicabe material
acryl, perspex, wood, rubber, leather,fabric, paper, cltoh, dual-colour boards.etc
