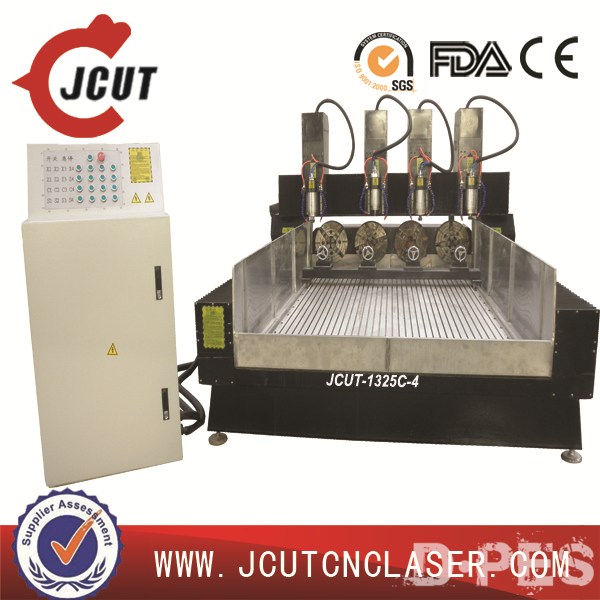

Four heads and rotary axes 1325 stone cnc router JCUT-1325C-4 (51/4X98.4X 11.8inch)
Applicable industry: stone, tombstone processing, advertising, decoration, wood furniture, handicraft industries. It can be for murals, marble, granite, tombstone, milestones, tile and other stone carvings for text and graphics engraving and relief. glass, wooden fish stone and other hard materials engraving and cutting.
Performance Features:
1.Three axes adopt import linear orbit, two line sliding track, heavy loading, stable working, high precision, long lifetime .
2. Whole seamless weld steel structure, not easy to distort, the table back lining is armor plate, good rigidity, the machine can bear 1MT weight at least.
3. Constant power spindle and motor, high cutting capability, high efficiency.
4. Well compatibility, compatible software CAD/CAM, such as Type 3, Artcam,Castmate,Artcam,Coredraw.
5. High flexibility, uneasy distorted cable and imported electronic components guarantee the stability of operating the machines.
Main Parameters:
|
Machine body
|
Whole seamless welded steel tube structure
|
|
Working size
|
1300/4x2500x300mm(51/4x98.4x11.8inch)
|
|
Rotary axis
|
200mm(diameter)x2500mm(length)x4
|
|
Spindle power
|
3kwx4 varied speed water cooling spindle
|
|
Router bits cooling(water sink)
|
Yes
|
|
Working table
|
Aluminum PVC T slot table
|
|
Guideway
|
Square orbit guideway
|
|
Drive mode
|
X,Y-rack and pinion Z- ballscrew
|
|
Drive motor
|
Stepper motor
|
|
Control system
|
4 axis DSP(or Mach3)
|
|
Command
|
G.code , mmg , plt , uoo,HPGL
|
|
Compatible Software
|
Type3, Artcut, ArtCAM, masterCAM software
|
|
Packing size
|
2100mm X 3300mm X 1600mm wooden trunk
|
Table size: 1450x3000mm
Feeding Height: 300mm
Processing accuracy: 0.05mm
Repositioning accuracy: 0.02mm
Spindle rotating speed: 0-24000rpm/min
Max Moving Speed: 10000mm/min
Working speed: 0-6000mm/min
Voltage: AC380V/50Hz
Max. Power consumption: 6.2KW
Net weight: 1800KG
Optional parts: bigger spindle,different rotary diameter,sevro motor
