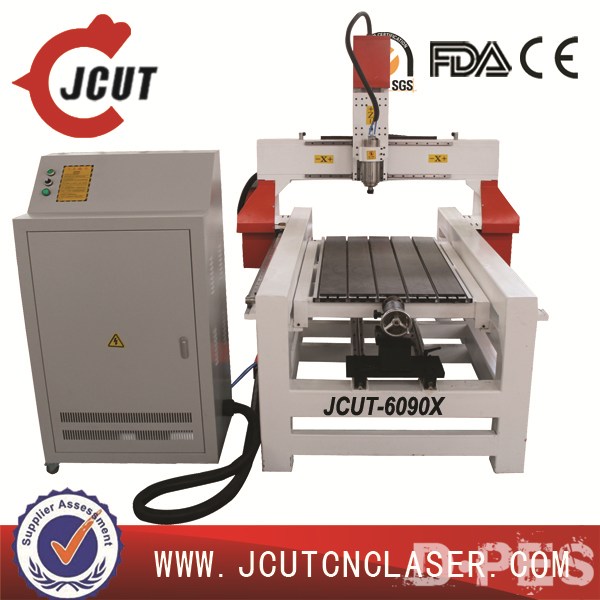

3 axis china wood cnc router price for cnc wood carving machine and wood engraving machine JCUT-6090X(23.6''x35.4''x23.6'')
Buying guide
To choose a suitable machine for your works,pls tell me:
Q1: What about your material , wood or acrylic or ?
Q2: The size of your mateiral , length ? Width and thickness?
Q3: Do you want to cut or engrave your material ? Or both cut&engrave ?
Q4: What machining effection do you want to get ? It is better you can send sample pictures to me .
Q5: The machine choose 220v or 110v or ?
Q6: what about your nearest sea port
Contat Me
Skype:jcutcnc08 Yahoo:jcutcnc08
Mobile:86-13969197759
&
&
available now
Email: cnclaser(at)jcutcnclaser.com/jcutcnc08(at)hotmail.com
Applications
1. Wood processing: processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture.
2. Advertisement:engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials including marble, brass, steel, and other metallic material.
3. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto.
4. Molding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
5. Architectural models: engraving fine window, fencing and wall patterns, etc.
6. Seal: engraving seals and medal on materials such as buffalo horn, wood etc.
7. Label: engraving character, number, and other pattern on label for products and on product directly.
Specifications
|
|
Features:
multi functions flat board and cylinder material processing machine, max processing cylinder diameter can be up to 600mm,and T slot PVC table moveable
|
Model No
|
JCUT-6090X
|
Machine body
|
Welded steel tube structure
|
Working dimensions
|
600x900x200mm
|
Max rotary diameter:600mm,feeding height:600mm
|
Guide way
|
Linear guideway(optinal:cylindrical gudieway)
|
Driving mode
|
Rack and pinion
|
Control system
|
DSP(optional:MACH3/Ncstudio)
|
Software
|
type 3 software, Artcut software, Artcam software
|
Command
|
G code, u00, mmg, plt
|
Spindle motor
|
2.2kw variable speed, water cooling spindle motor
|
Blade diameter
|
3.175mm, 4mm, 6mm,8mm,10mm,12mm,12.7mm
|
Spindle speed
|
0 - 24,000rpm /min
|
Max. Speed
|
17,000mm/min
|
Working speed
|
1,000mm/min
|
Mechanical precision
|
0.01mm
|
Running circumstance temperature
|
0-45 C
|
Relative humidity
|
30% - 75%
|
Applications:
Furniture decoration, Musical Instruments industry, wooden crafts industry,large area plank plane sculpture, solid wood furniture, annatto furniture, real wood art mural, density board paint-free door, Wood composite door, wardrobe,cabinets, beside cupboard, screen engraving and so on.
Sample:
Key point:
Please kindly tell us your engraving or cutting materials, and materials’ size.
Then we can quickly check and recommend to you the right machine with right working area.
We send below parts for free:
Software in CD, Controlling Card (PCI card), Water Tank, Water Pump, Engraving Tools, Data Wire, Power Line, Brush, Spanner and Clamp.
The optional accessories:
1. Rotary axis
----For engraving on cylindrical shape materials. Please kindly tell us your cylindrical shape materials’ length and diameter. Then we can add right rotary axis to the machine, and quote the right price for your rotary axis.
2. Vacuum table (contain vacuum pump and vacuum pipes)
----For fixing the materials on the working table, especially for bigger working table.
After added vacuum table, the voltage will need to be 3 phase/380V.
3. Dust collector (contain dust collector pump and dust collector pipes)
----For sucking away the dusts, such as wood dusks and so on.
4. DSP controlling system (off-computer controlling) /MACH3(USB interface/Lan interface)
----USB interface, 128MB flash memory
5. Water cycling system (water sink on the working table)
----For engraving on stone or metal materials. It is used to down the spindle’s high temperature
Freight:
We can send this machine to your port or door address by sea or by air. Do as you need.
If sending to your port, please tell us your port.
If sending to your door address, please tell us your address, and better with post code.
Warranty:
One year for machine
We supply online service 24 hours a day MSN, Skype, Yahoo, Gmail and so on.
You can also contact us by email, and we will reply in 24 hours, or by phone if urgently
