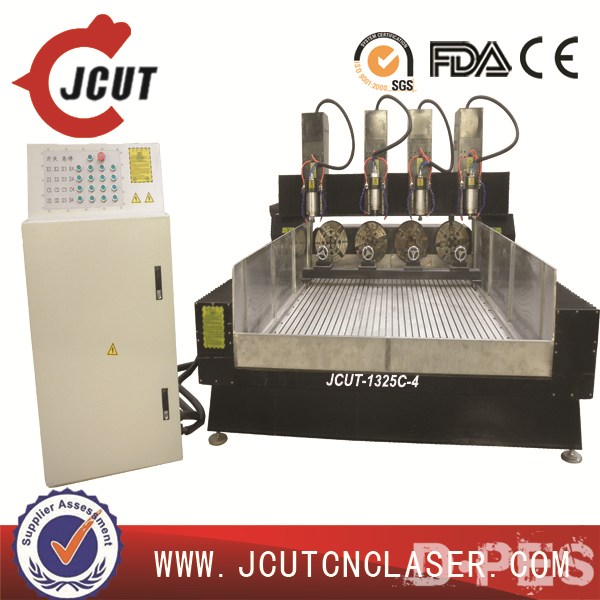

4 axis cnc router engraving machine cnc 1325 1325 Professional marble stone engraving JCUT-1325C-4 (51''x98.4')
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
JCUT-1325C
Select Payment and Shipping Terms:
Min. Order Quantity:
1
Place of Origin:
Min. Order:
10
FOB Price:
0.00-0.00 /
Shippment Port:
Qingdao
Payment Terms:
T/T,Western Union,MoneyGram
Show Buyers your Ability to Supply:
Production Capacity:
30 Set/Sets
Delivery Time:
Month
Packaging:
standard wooden trunk for export
Mr. Li Pengfei



Send a Message to this Supplier

Supplier Details
Product Details Company Profile

4 axis cnc router engraving machine cnc 1325 1325 Professional marble stone engraving

 JCUT-1325C-4 (51''x98.4')



Applications:

This series of models are mainly used for heavy weight of the tile, bluestone,marble, granite, white marble, sandstone,such as a stone sculpture processing, category carved glass-cutting and engraving melting material.

Buying Guides

To choose a suitable machine for your works,pls tell me:

Q1: What about your material , wood or acrylic or ?
Q2: The size of your mateiral , length ? Width and thickness?
Q3: Do you want to cut or engrave your material ? Or both cut&engrave ?
Q4: What machining effection do you want to get ? It is better you can send sample pictures to me .

Q5: The machine choose 220v or 110v or ?

Q6: what about your nearest sea port

Sample:

4 axis cnc router engraving machine cnc 1325 1325 Professional marble stone engraving JCUT-1325C(with rotary)

4 axis cnc router engraving machine cnc 1325 1325 Professional marble stone engraving JCUT-1325C(with rotary)

Parameter:



JCUT MODEL

JCUT-1325C-4

Working Area (X*Y*Z)

1300X2500X300mm(51X98.4X11.8inch)

Rotary axis

200mm(diameter)x2500mm(length)x4

Table size

1450x2650mm

Processing accuracy

0.03mm

Repositioning accuracy

0.01mm

Spindle

3KW water-cooled spindle motorx4

Spindle rotating speed

0-24000rpm/min

Max Moving Speed

17000mm/min

Working speed

0-8000mm/min

Guideway

HIWIN square linear guideway

Driving mode

Z-Ball screw ,XY-Rack drive

Voltage

AC380V/50Hz

Max. Power consumption

6.2KW

Feeding Height

300mm

Drive motor

Stepper motor

Command

G.code , mmg , plt , uoo,HPGL

Controlling software

Ncstudio software

Compatible Software

Type3, Artcut, ArtCAM, masterCAM software

Certificate

CE,FDA

Pack dimensions

2200mm X 3300mm X 1750mm wooden trunk

Net weight

1600KG

 Key point:

Then we can quickly check and recommend to you the right machine with right working area.

We send below parts for free:

Software in CD, Controlling Card (PCI card), Water Tank, Water Pump, Engraving Tools, Data Wire, Power Line, Brush, Spanner and Clamp.

The optional accessories:

1. Rotary axis

----For engraving on cylindrical shape materials. Please kindly tell us your cylindrical shape materials’ length and diameter. Then we can add right rotary axis to the machine, and quote the right price for your rotary axis.

2. Vacuum table (contain vacuum pump and vacuum pipes)

----For fixing the materials on the working table, especially for bigger working table.

After added vacuum table, the voltage will need to be 3 phase/380V.

3. Dust collector (contain dust collector pump and dust collector pipes)

----For sucking away the dusts, such as wood dusks and so on.

4. DSP controlling system (off-computer controlling) /MACH3(USB interface/Lan interface)

----USB interface, 128MB flash memory

5. Water cycling system (water sink on the working table)

----For engraving on stone or metal materials. It is used to down the spindle’s high temperature

Warranty:

One year for machine

We supply online service 24 hours a day MSN, Skype, Yahoo, Gmail and so on.

You can also contact us by email, and we will reply in 24 hours, or by phone if urgently.
