low cost pcb cnc drilling machine/PCB cnc machine cnc milling machine  JCUT-4040

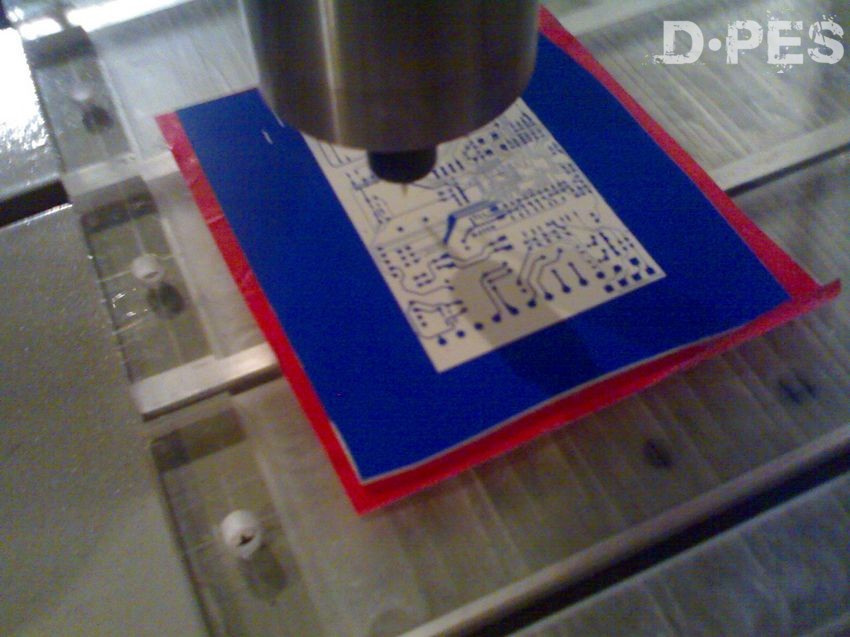

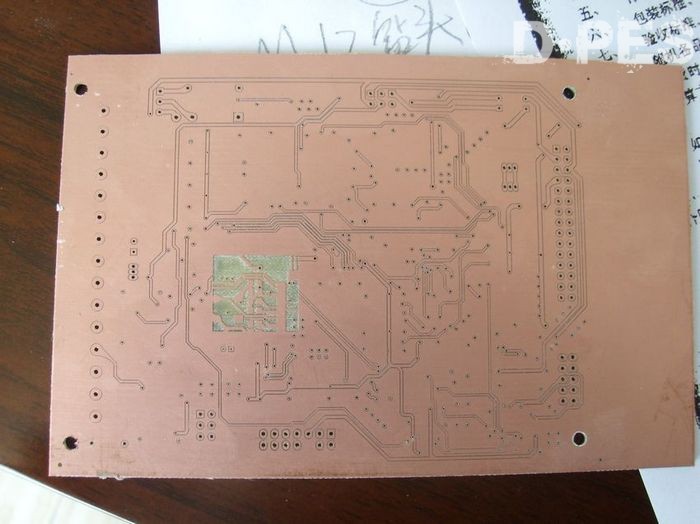

The most boring ting to do is to make the PCB. Though now most people give the boring affairs to the PCB factory, yet it is indeed too long to wait for about three days or a week. New inspiration for a design is usually given up because of the trouble. While a PCB making machine can finish making a piece of PCB only in a few minutes, which can let your inspiration instant come true.



Main features:

1. High efficiency: It merely needs a few minutes to make a piece of PCB.

2. Accuracy: The min error of numerical control drill hole less than 1mil (0.025mm).

3. Automatism and convenience: Simple software hardware installation, operate the manufacturing process by striking the function keys of operation system.



Specification:

1.        Machined surface: single/double

2.        Working size: 400*400*100mm

3.        Max. speed: 8000mm/min

4.        Working speed: 0-4000mm/min

5.        Working accuracy: 6-8 mil

6.        Least line diameter and least line spacing: 6-8mil

7.        Drilling depth: 0.02 ~ 3mm

8.        Drilling diameter: 0.4 ~ 3.175mm

9.        Drilling holes: 40-100/min

10.    Repeat Accuracy: 0.025mm

11.    The least error of Data control drill less than 1mil (0.015mm)

12.    Operation system: WIN2000/XP/VISTA

13.    Means of communication: PCI or RS232

14.    Function Request: Protel PCB document can be directly put in. (gerber)

15.    Spindle speed: 24000rpm

16.    Spindle power: 1500W

17.    Power supply: AC210-240V

18.    Body dimensions: 850 x 850 x 1200mm

19.    Net weight: 160Kg

20.    Gross weight: 180Kg
