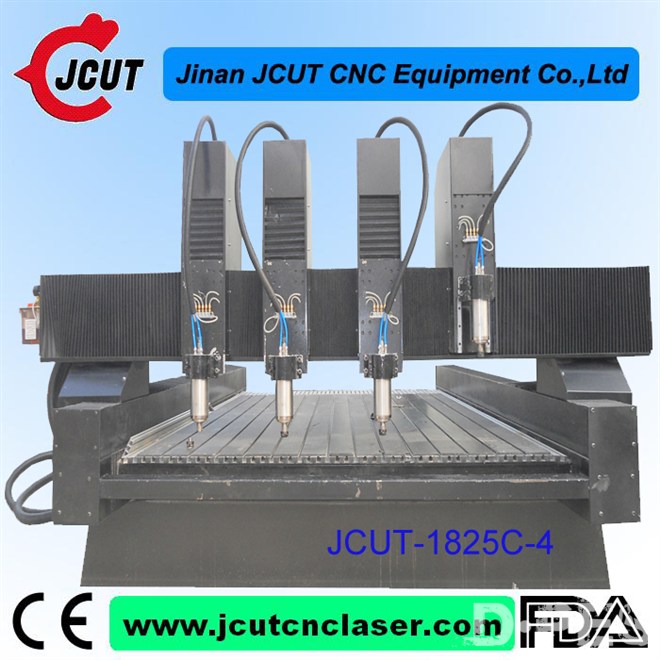

cnc router metal machine stone marble metal advertising cnc router acrylic/mdf/wood/metal/marble four heads cnc router JCUT-1825C-4 (70.8X98.4X 11.8inch)
Applicable industry: stone, tombstone processing, advertising, decoration, wood furniture, handicraft
industries. It can be for murals, marble, granite, tombstone, milestones, tile and other stone carvings
for text and graphics engraving and relief. glass, wooden fish stone and other hard materials engraving
and cutting.
Performance Features:
1.Three axes adopt import linear orbit, two line sliding track, heavy loading, stable working, high precision, long lifetime .
2. Whole seamless weld steel structure, not easy to distort, the table back lining is armor plate, good rigidity, the machine can bear 1MT weight at least.
3. Constant power spindle and motor, high cutting capability, high efficiency.
4. Well compatibility, compatible software CAD/CAM, such as Type 3, Artcam,Castmate,Artcam,Coredraw.
5. Double direction cutters cooling system can prolong the lifetime of using.
6. High flexibility, uneasy distorted cable and imported electronic components guarantee the stability of operating the machines.
Main Parameters:
Machine body
|
Whole seamless weld steel structure
|
Working dimension
|
1800/4X2500X300mm (70.8X98.4X 11.8inch)
|
Water sink
|
Yes
|
Spindle power
|
2.2kwx4 constant power spindle
|
Guideway
|
Linear rail guideway
|
Drive mode
|
X,Y-rack and pinion,Z-ball screw
|
Drive motor
|
Stepper motor(optional:servo motor)
|
Control software
|
Ncstudio (optional:Mach 3/DSP)
|
Command
|
G.code , mmg , plt , uoo,HPGL
|
Compatible Software
|
Type3, Artcut, ArtCAM, masterCAM software
|
Pack dimensions
|
2200mm X 3300mm X 1600mm wooden trunk
|
Table size: 1950x3000mm
Feeding Height: 300mm
Processing accuracy: 0.05mm
Repositioning accuracy: 0.02mm
Spindle rotating speed: 0-24000rpm/min
Max Moving Speed: 10000mm/min
Working speed: 0-6000mm/min
Voltage: AC380V/50Hz
Max. Power consumption: 6.2KW
Net weight: 1100KG
Option: Rotary axis, or bigger spindle.
Different working size:
600X800mm/600X1500mm/900X1500mm/1200x1200mm/1200x1500mm/
1200x1800mm/1200x2400mm/1500x3000mm or other sizes according to customers’
