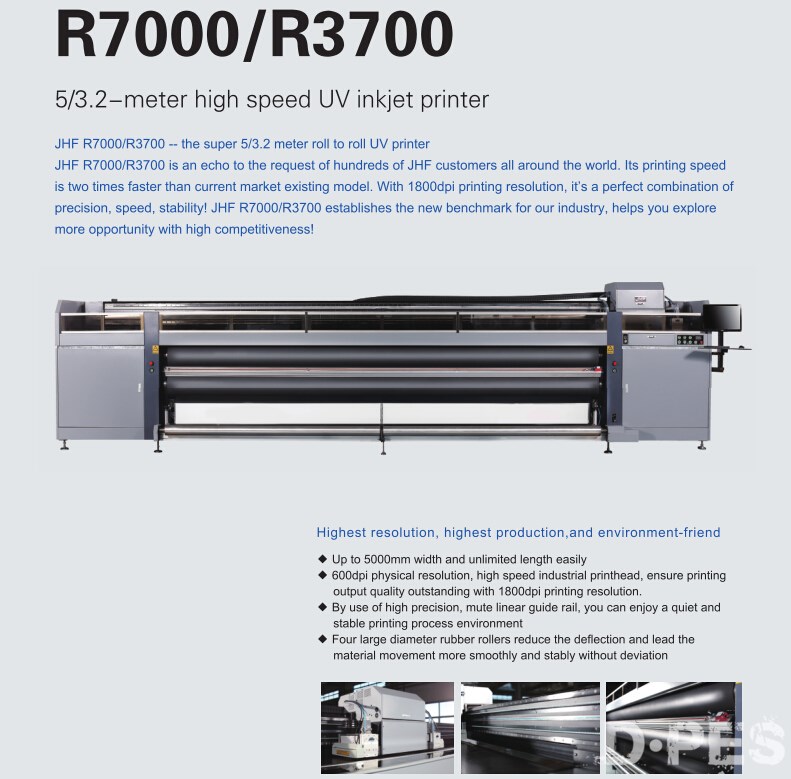

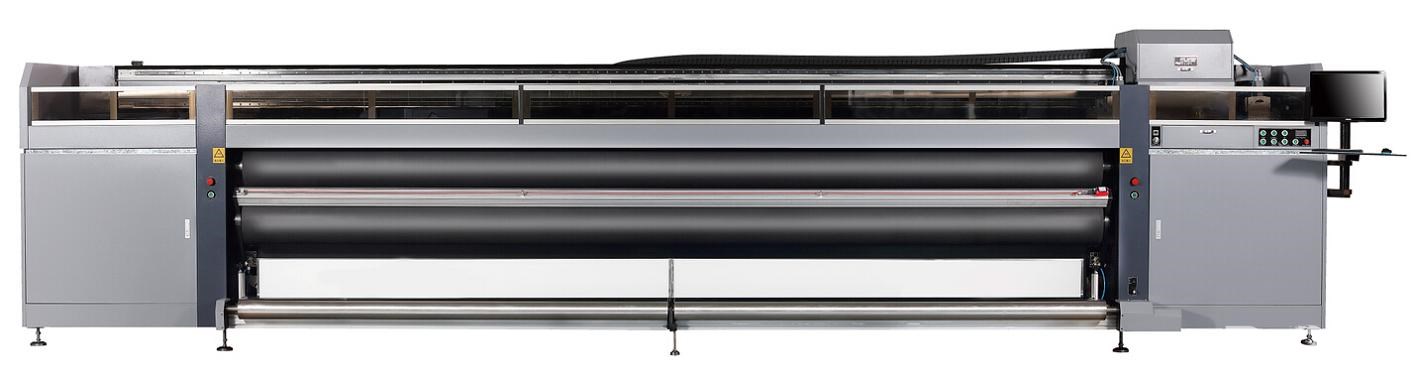

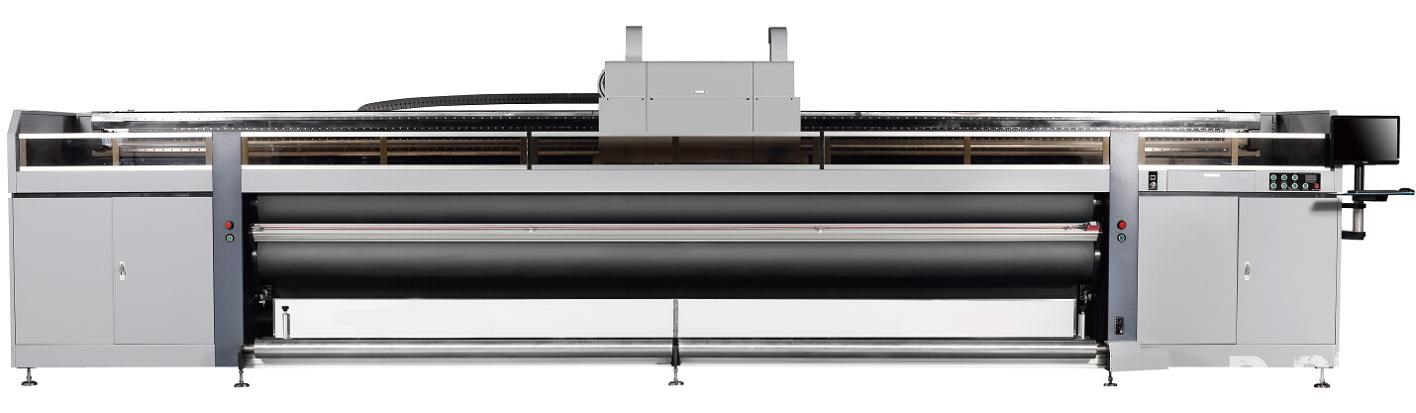

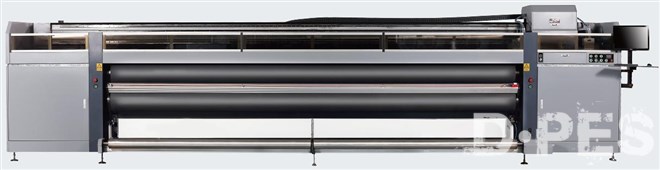

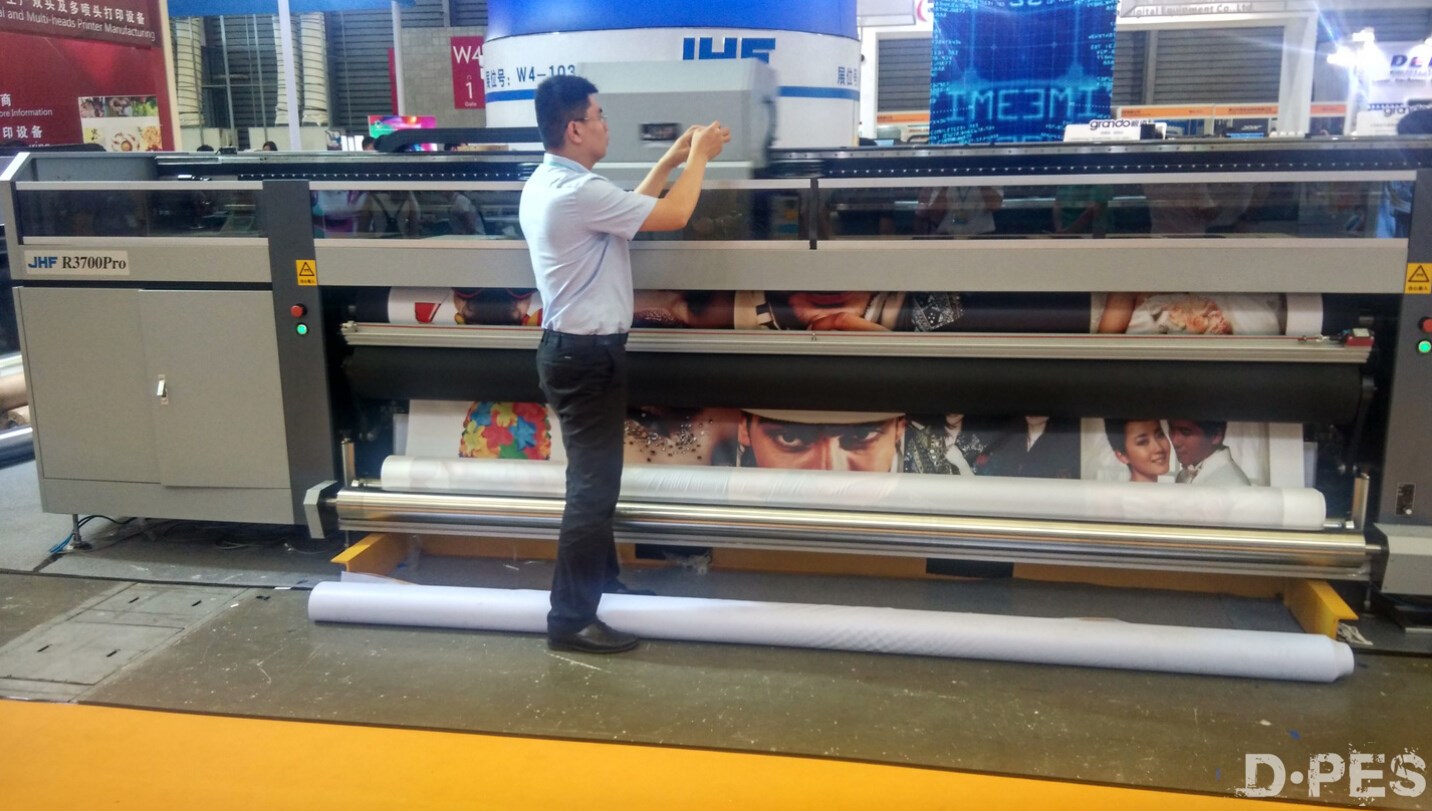

Large-format high speed roll to roll UV digital printer

JHF R7000/R3700 is an echo to the request of hundreds of JHF customers all around the world.Its printing speed is two times faster than current market existing model.With 1800dpi printing resolution, it’s a perfect combination of precision, speed, stability!JHF R7000/R3700 establishes the new benchmark for our industry, helps you explore more opportunity with high competitiveness!

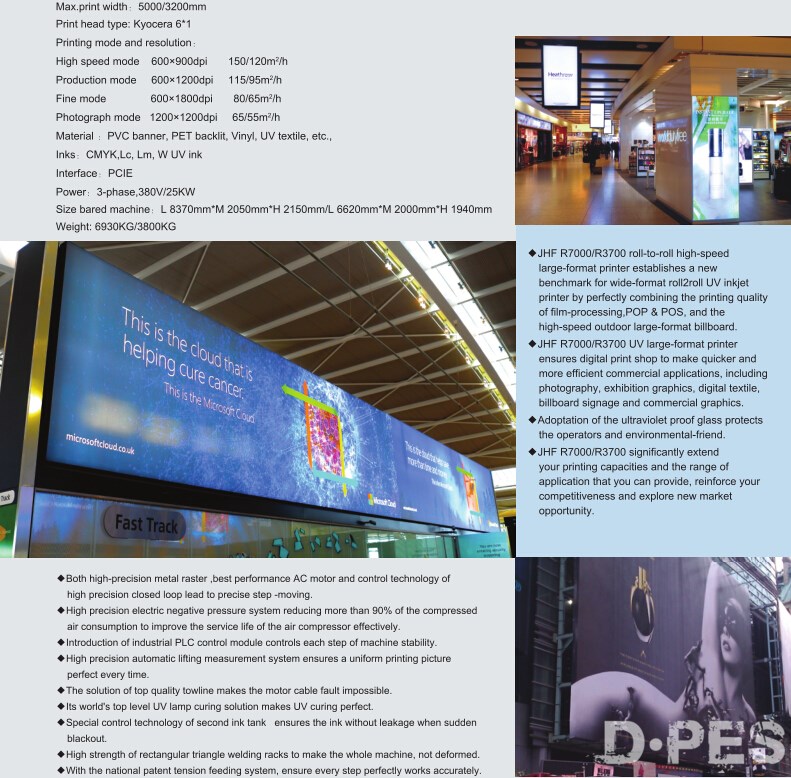

Specifications

Max.print width：5000/3200mm
Print head type: Kyocera 6*1  3pl
Printing mode and resolution：
High speed mode: 1pass 600×900dpi       150/120m2/h
Production mode:  2pass 600×1200dpi     115/95m2/h
Fine mode:            3pass 600×1800dpi       80/65m2/h
Photograph mode: pass1200×1200dpi     65/55m2/h

Material ：PVC banner, PET backlit, Vinyl, UV textile, etc.,
Inks：CMYK,Lc, Lm, W UV ink
Interface：PCIE
Power：3-phase,380V/25KW
Size bared machine：L 8370mm*M 2050mm*H 2150mm/L 6620mm*M 2000mm*H 1940mm

Weight: 6930KG/3800KG

Highest resolution, highest production,and environment-friend

◆ Up to 5000mm width and unlimited length easily

◆ 600dpi physical resolution, high speed industrial printhead, ensure printing

output quality outstanding with 1800dpi printing resolution.

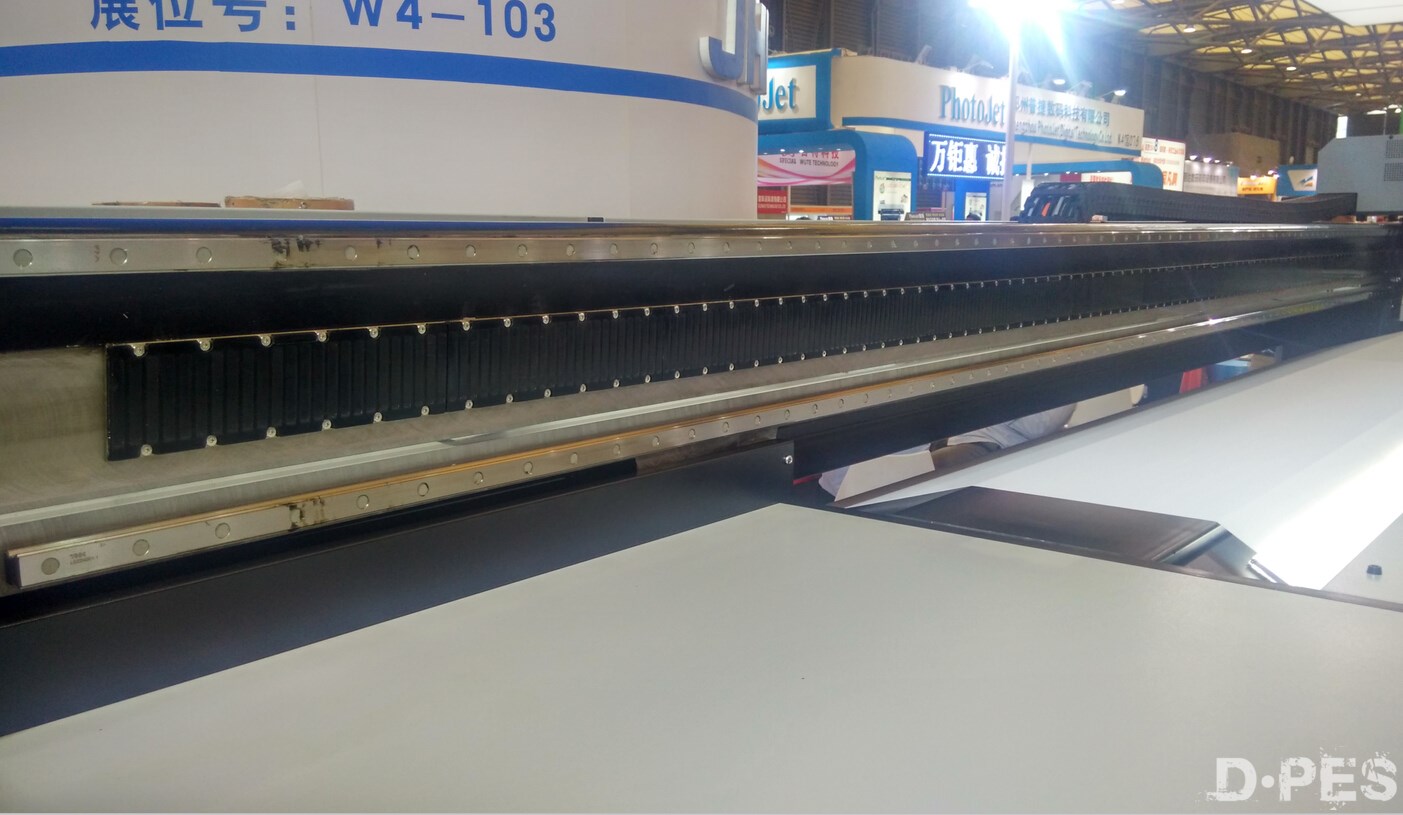

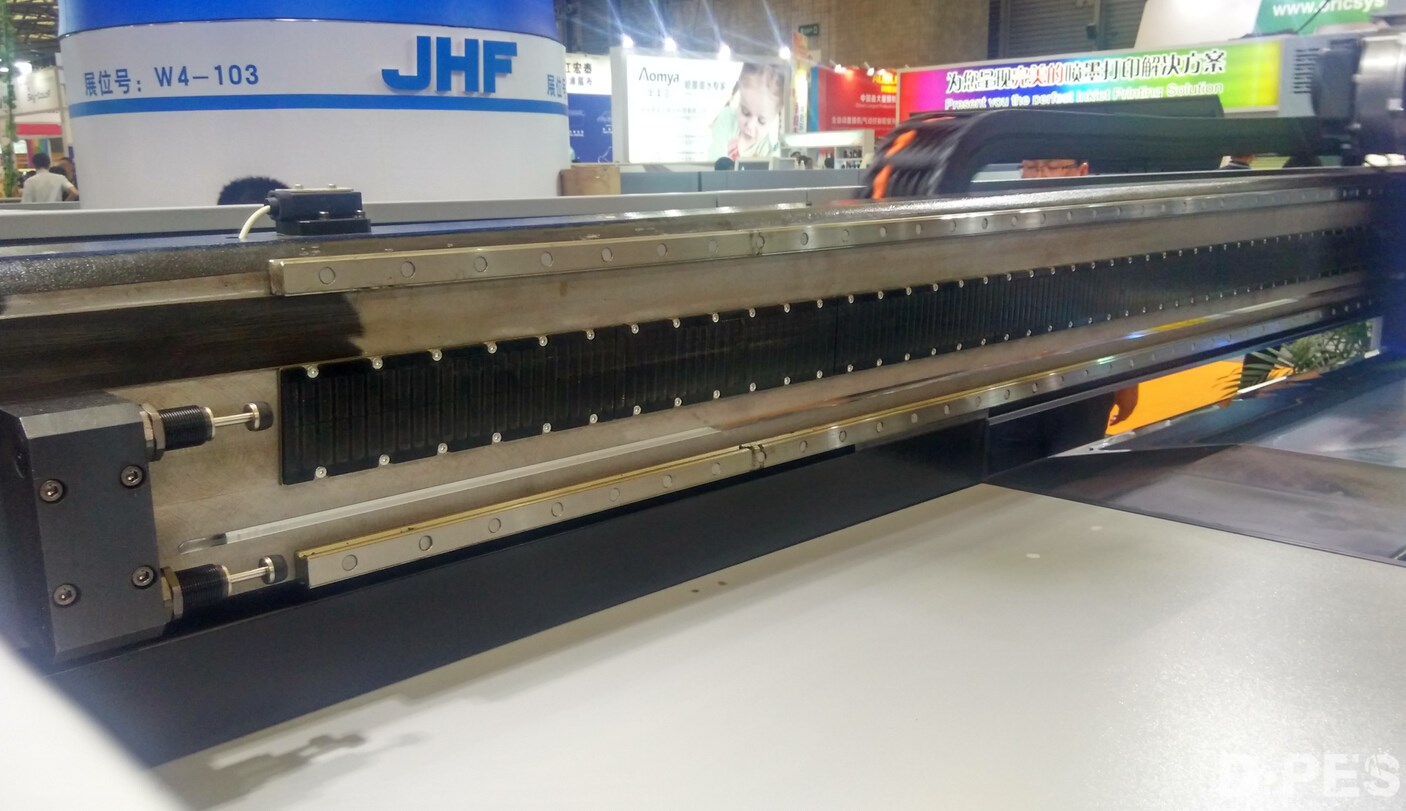

◆ By use of high precision, mute linear guide rail, you can enjoy a quiet and

stable printing process environment

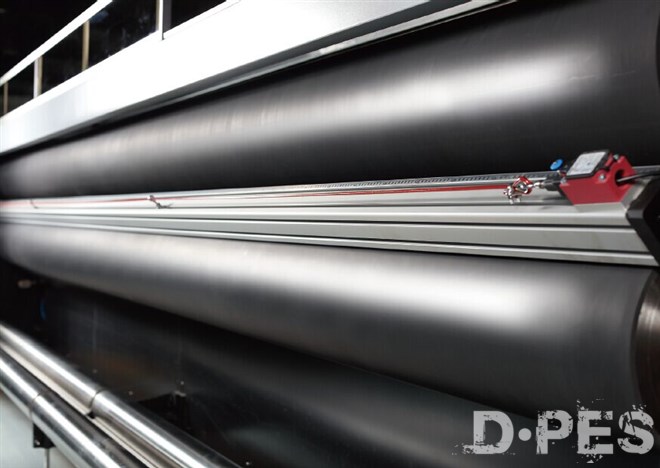

◆ Four large diameter rubber rollers reduce the deflection and lead the material movement more smoothly and stably without deviation

◆JHF R7000/R3700 roll-to-roll high-speed large-format printer establishes a new

benchmark for wide-format roll2roll UV inkjet printer by perfectly combining the printing quality of film-processing,POP & POS, and the high-speed outdoor large-format billboard.

◆JHF R7000/R3700 UV large-format printer ensures digital print shop to make quicker and more efficient commercial applications, including photography, exhibition graphics, digital textile,billboard signage and commercial graphics.

◆Adoptation of the ultraviolet proof glass protects the operators and environmental-friend.

◆JHF R7000/R3700 significantly extend your printing capacities and the range of

application that you can provide, reinforce your competitiveness and explore new market opportunity.

◆Both high-precision metal raster ,best performance AC motor and control technology of high precision closed loop lead to precise step -moving.

◆High precision electric negative pressure system reducing more than 90% of the compressed air consumption to improve the service life of the air compressor effectively.

◆Introduction of industrial PLC control module controls each step of machine stability.

◆High precision automatic lifting measurement system ensures a uniform printing picture perfect every time.

◆The solution of top quality towline makes the motor cable fault impossible.

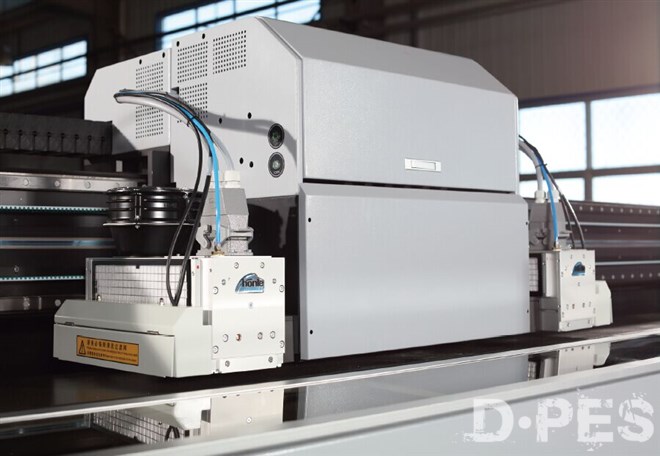

◆Its world's top level UV lamp curing solution makes UV curing perfect.

◆Special control technology of second ink tank ensures the ink without leakage when sudden blackout.

◆High strength of rectangular triangle welding racks to make the whole machine, not deformed.

◆With the national patent tension feeding system, ensure every step perfectly works accurately.

◆National patent of press roller structure provides a solid foundation for media feeding.

◆Impressive national patent machine body .
