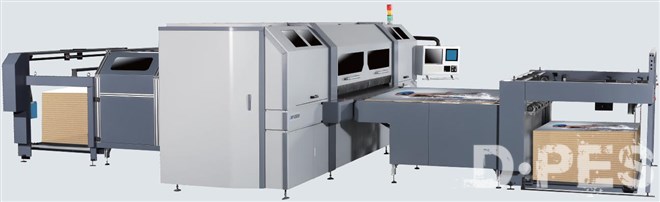

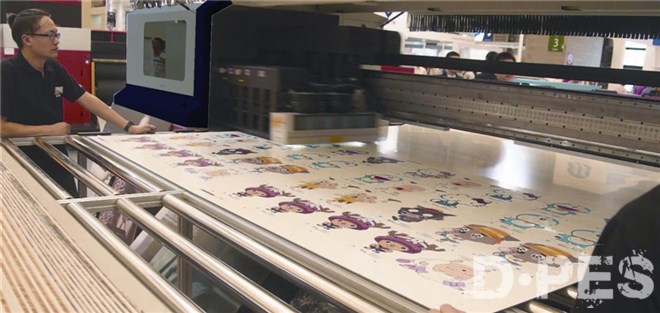

U3000-New Industrial UV digital Hybrid Printer

Efficient production, productivity, is the key for industrial printing. Thanks to technology provided by one of the best industrial inkjet print head manufacturers Kyocera, the new generation of high-speed industrial printers U3000 can finally address the needs of the  market.  Truly designed to allow digital printing to compete with high speed screen and offset printing, Speed of the new system  is up to 300sqm/hr.  It is easy to switch from sheet to sheet to roll to roll format. It is the "must-have" product for those companies who want to make the transition from traditional print technology to digital. The new upload and loading system mean less manpower is needed to finish the job. The new U3000 will help you to win time and ensure you are competitive in the packaging market.

Truly designed to allow digital printing to compete with high speed screen and offset printing, Speed of the new system is up to 300sqm/hr. It is easy to switch from sheet to sheet to roll to

roll format. It is the "must-have" product for those companies who want to make the transition from traditional print technology to digital. The new upload and loading system mean less manpower is needed to finish the job. The new U3000 will help you to win time and ensure you are competitive in the packaging market.

Committed to industrializing production of UV inkjet digital printers.Break through the application bottleneck of UV digital printer.Create our own unique solution for various applications.

Exclusively designed high-level printer both for flat and roll to roll media.

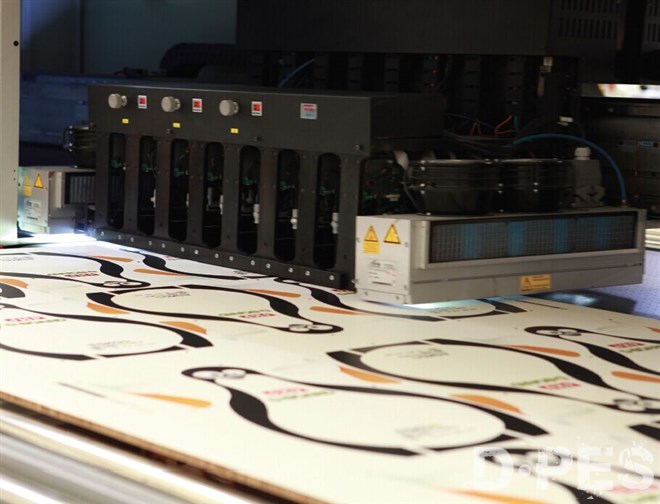

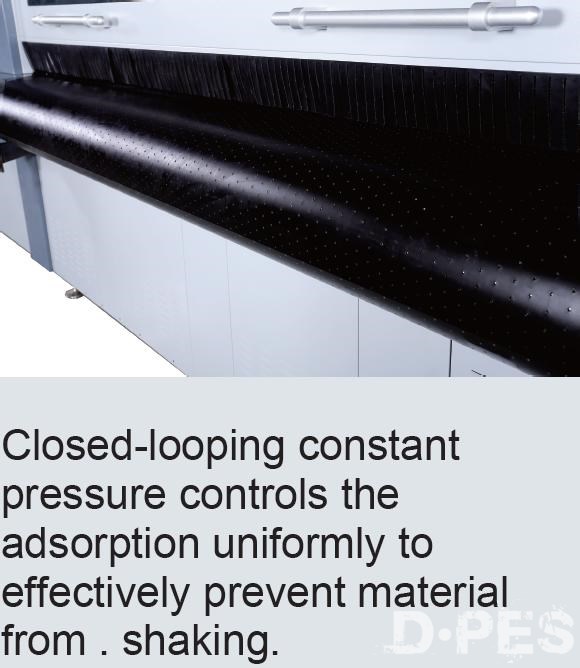

Both high-precision metal raster ,best performance AC servo motor and control technology of high precision closed loop lead to precise step-moving. The use of 0.02 Kpa electric negative pressure system which monochrome used independently, zero printhead pressure difference. meanwhile,reducing more than 95% the compressed air consumption to improve the service life of the air compressor effectively.Industrial grade PLC centralized control system controls the whole machine in details stably.High precision automatic lifting measurement system ensures a consistent printing quality perfectly all the time.The solution of top towline achieves a“zero failure”of motor cables stable operation.The world’s top level UV lamp curing solution makes

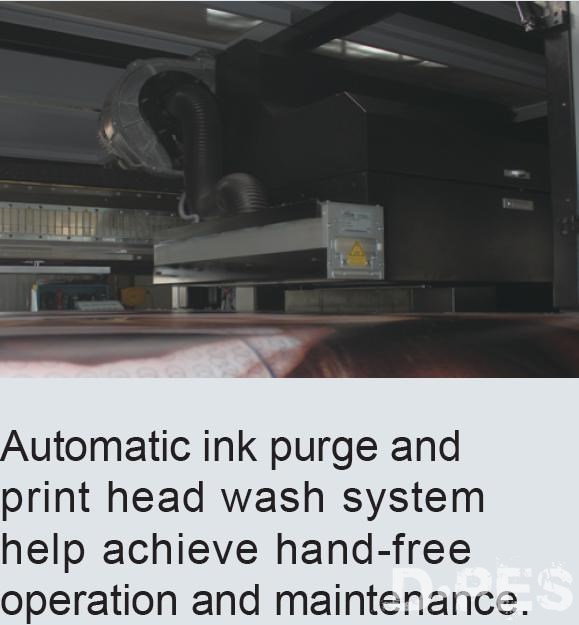

UV curing completely.Special controlled technology of second ink tank ensures the ink without leakage at sudden blackout.Automatic printhead maintenance function enhance production efficiency greatly.High-precision automatic conveyor belt correction system significantly reduces maintenance time.

Specifications

Print Head：New industrial print head
Print Head Quantity：（6+1）*4
Print Mode：
High speed mode   600×600dpi       300m2/h
Production mode    600×1200dpi     230m2/h
Fine mode              600×1800dpi     160m2/h
Photograph mode  1200×1200dpi    120m2/h
Print width：2500mm

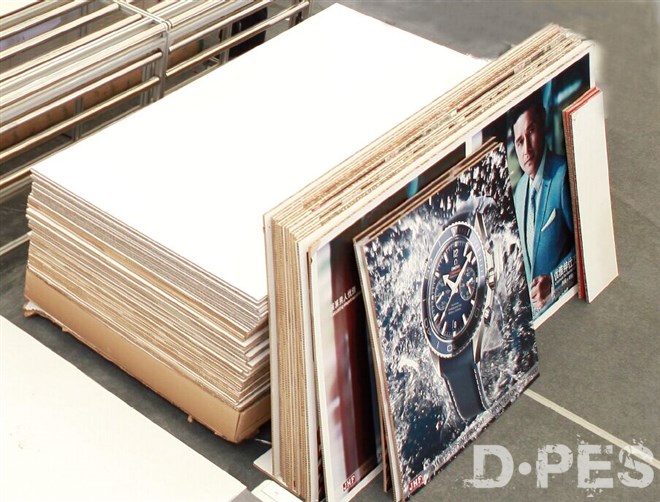

Media Type：Glass,wood,bamboo,ceramic,organic glass,metal plate,leather cloth,prompt paste,single-permeable membrane,acrylic sheet,foamed PVC sheet,wallpaper,reflective membrane,canvas,carpet,paper,crystal,rubber,
marble,corrugated sheet,etc.
Ink color：6+1colors
Ink pack size：2.5 liters
RIP Software：Caldera/Wasatch
Interface：PCIE
Voltage and power：Three phasa 380VAC，50KW
Size bared machine：
L 8280mm*M 2030mm*H2000mm

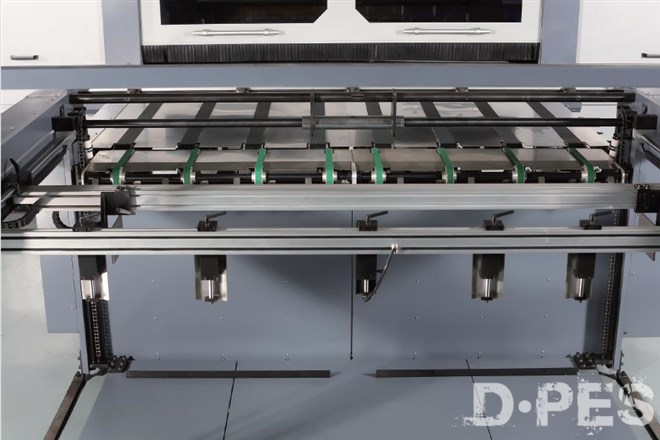

Auxiliary platform (optional): roll material take -up system, roll material feeding system; auxiliary platform for flat material feeding and take-up.
