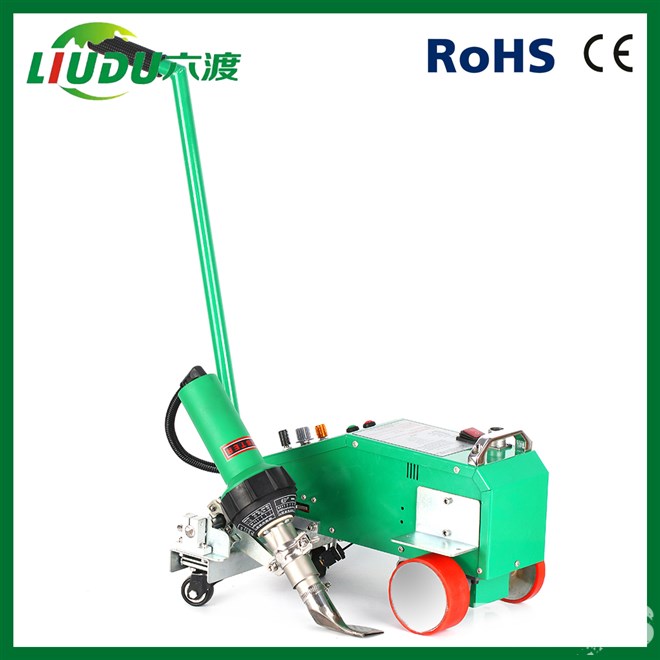

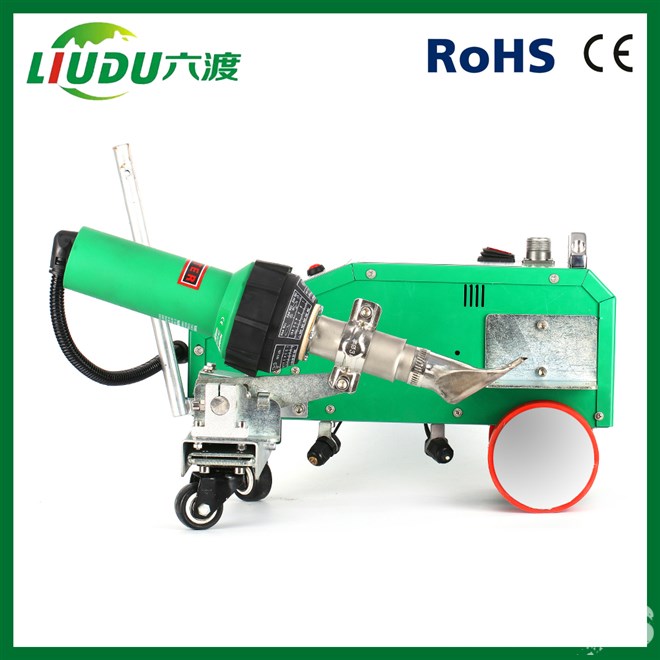

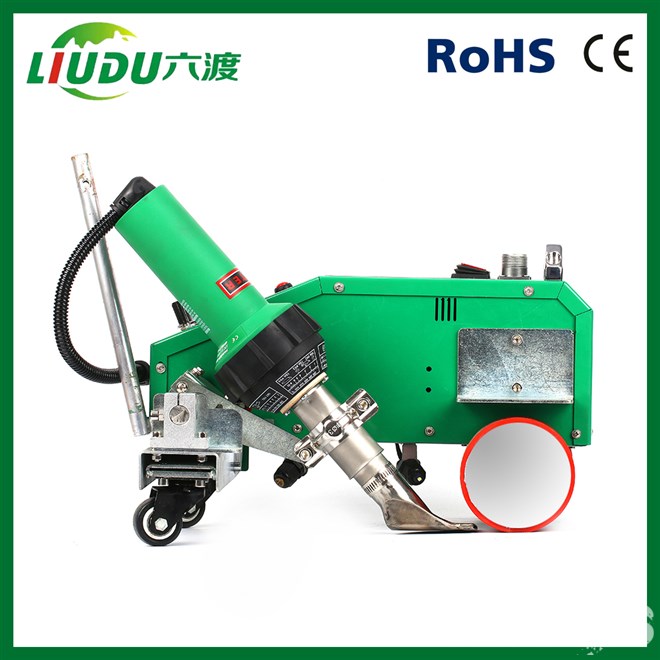

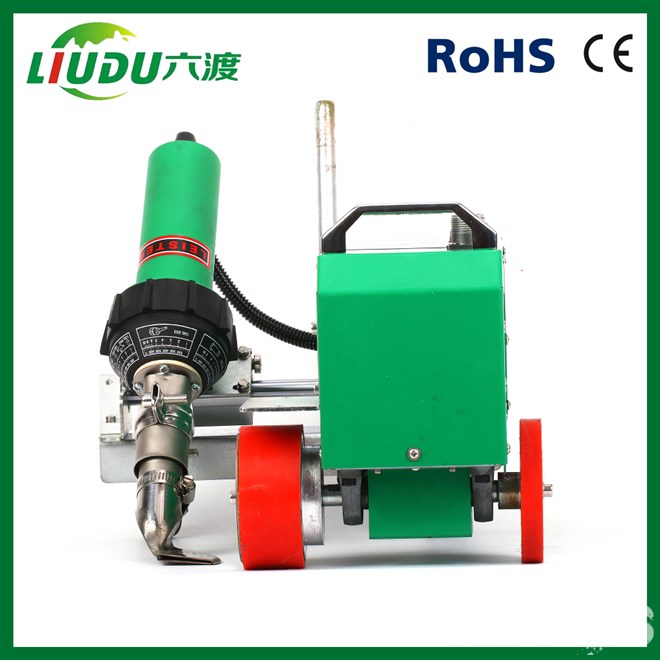

Tarpaulin welding machine TOP2000B is designed to weld Tarpaulin,Tent,printing cloth,PE,PVC,and other
plastic without glue.it equipped with Weldy heat gun,welding stable and result is perfect.
The characteristics of TOP2000Bhot air welding machine:
1.Adopt the imported the Swiss Leister heat gun .its lifetime can reach 8-10years.
2.It perfomance is very stable.and easy to maintain.Its temperature fluctuation within 1degree
3. Well seam & weld the gap of the heat-melting material, such as PVC&PE material, fabric, canvas, sail cloth, without glue.
4. Small in volume, portable and light, conveniently transport.
5. Save more manpower and money.
6. Automatically self-moving, adjustable speed as your requirements.
7. High welding speed
8. Assembled with high quality accessories.
9. Constructed simply, easy to maintain
10. Easy and comfortable operation, proper packs for transport, quake-proof package.
11. Digital display for controlling temperature and speed.
12. Just need the family power for starting the machine
Operation:
1. First, make the picture smooth and tight, take jointer to accurate (about 2-4cm), fixed edges with tape or glue on the ground.
2.Set temperature and walk speed:Connect power, set temperature, and walk speed(according to the material
thickness), preheat the welder.(in general temperature we set is 350-400 degree. it means put set temperature button of the heat gun around 8.Walking speed is around 4,if the banner
burnt.we can put temperature lower or make walking speed faster. If can not weld strong,put temperature higher or make walking speed slower.)
3.Start welding:when the Display actual temperature reaches the set temperature, we can begin to weld.put the walking handrail(at end of the machine)to left,machine begain to work automaticlly.
4.During welding,let hot air nozzle between two overlap pieces. And be make surehot air nozzle and Rubber wheel walk in straight line.if not,please adjust by hand.
5.Finish welding:turn the walking handrail to the right ,machine stop walk,but before cut off the power,weshould put the set tem button to zero.when the actual temperature below 50 degreeyou can cut off the main power.or it would damage heat system.
