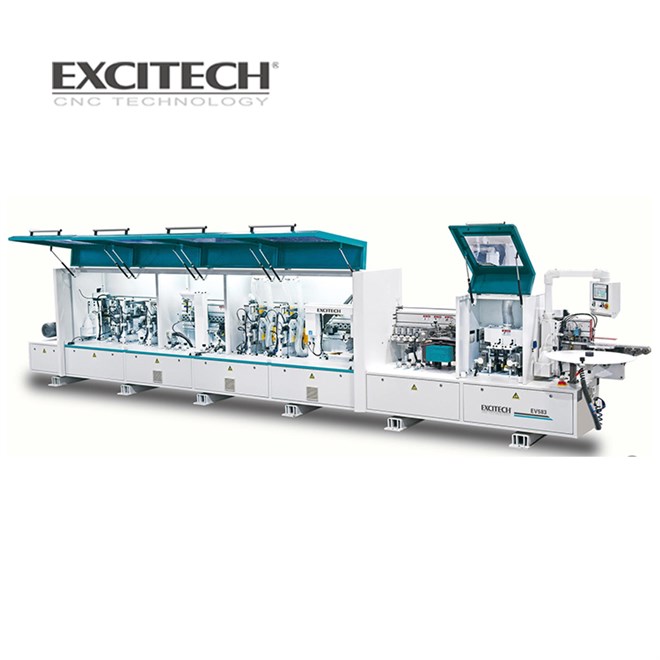

EXCITECH woodworking machine EV583 full automatic edgebander
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
EV583
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /
Shippment Port:
Qingdao Port
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
200 Set/Sets
Delivery Time:
Month
Packaging:
The cnc center is to be packed with plastic sheet for cleaning and damp proofing. Fasten the cnc machine into the wood case for safety and against clashing. Transport the wood case into the container.
Miss. Zou Doris



Send a Message to this Supplier

Product Details Company Profile

EXCITECH woodworking machine EV583 full automatic edgebander


Product Description

Edge banding work is an important process in the manufacture of panel furniture. The quality of the edge banding directly affects the quality, price and grade of the product. By edge banding, it can improve the appearance quality of the furniture, avoid the corners damage and the veneer layer pick up or peel off, and at the same time, it can play the role of waterproofing, close the release of harmful gases and reduce deformation during the transportation and useing process. The raw materials used by the panel furniture manufacturers are mainly for particleboard, MDF and other wood-based panels, the selected edge strips are mainly PVC, polyester, melamine and wood strips. The structure of the edge banding machine mainly includes the fuselage, various processing components and control systems. It is mainly used for edge sealing of panel furniture. It is characterized by automation, high efficiency, high precision and aesthetics. It has been widely used in panel furniture manufacturers.

EV583 edge banding is mainly for pre milling,gluing,end trimming,rough trimming, fine trimming, corner trimming,scraping, off-cut, flat scraping and buffing.

Technical Parameter



Description

EV583

Working piece length

Min.150mm

Input voltage

380v

Working piece width

Min.60mm

Input frequency

50HZ

Panel thickness

10~60mm

Output frequency

200HZ

Edge width

12~65mm

Power

16.6kw

Edge thickness

0.4~3mm

Air pressure

0.6pa

Feed speed

18~23m/min

Machine size

7640*950*1608

Min. workpiece size

300*60mm /150*150mm(L*W)





Part’s name

Brand

Inverter

Delta( TAIWAN)

PLC

Delta( TAIWAN)

Human-machine interface

Delta( TAIWAN)

Temperature control module

AUTONICS (KOREA)

Air switch

DELIXI

AC contactor

SHIHLIN (TAIWAN)

Intermediate relay

Weidmuller (Germany)

Travel switch

America HONEYWELL

Switch button

German SIMENS

High-speed motor for end trimming

CHANGLONG( custom)

Pneumatic components

TAIWAN AirTAC, Japan SMC





Detailed Images

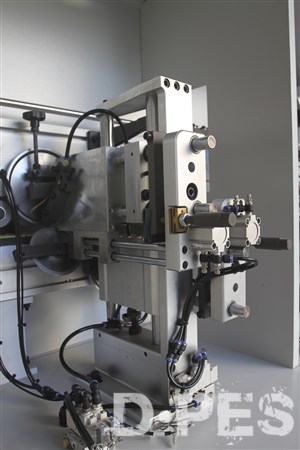

1. Pre-milling unit

1. Pre Milling.jpg

 It is equipped with diamond tools for better cut and longer use. This device removes the burr or uneveness on the edge of the workpiece, leaving a smooth surface for the edgebanding. It can profile units available upon request.

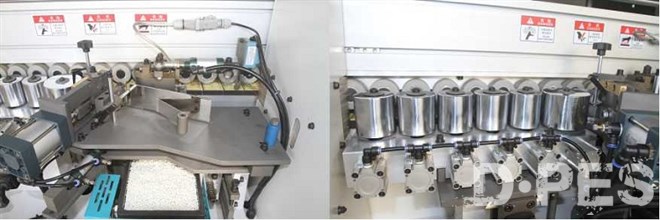

2. Gluing

 2. Gluing.jpg



Intelligent temperature control, automatic stop heating when unmanned operation, safe and stable, speed up, high-precision rubberizing wheel to ensure perfect and uniform coating on various materials.

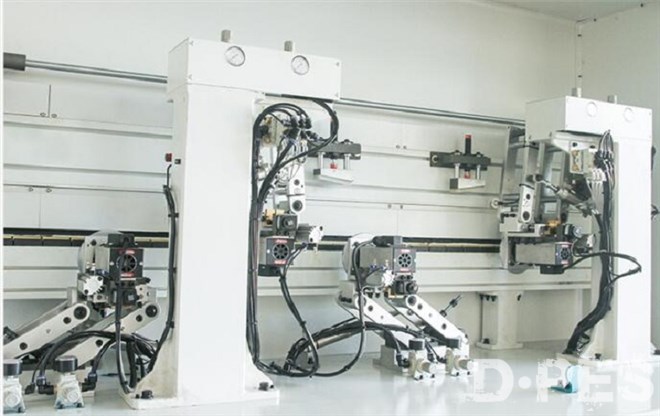

3. Corner Trimming

 corner trimming.jpg



It is equipped with 4 motors and works well with various edge thickness and invariably result in perfect round corner.



4.  R scraping

R scraping.jpg

No power scraping mechanism, for PVC/ABS edge banding within 3mm, R scraping edge is to remove the edge of the finishing unit in the processing edge band, so that the edge of the edge band More full and straight.



5. Flat scraping



flat scraping.jpg



Pneumatic control, the role is to scrape off the remaining glue left on the wood, reducing the glue line.

Sample

Application:

The raw materials used by the panel furniture manufacturers are mainly for particleboard, MDF and other wood-based panels, the selected edge strips are mainly PVC, polyester, melamine and wood strips.

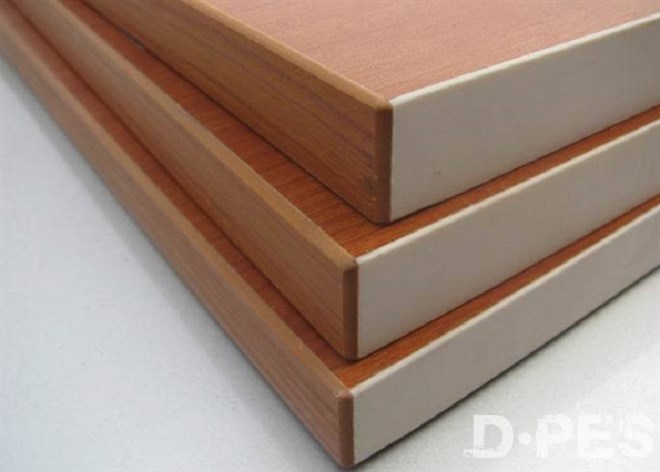

 sample 1.jpg

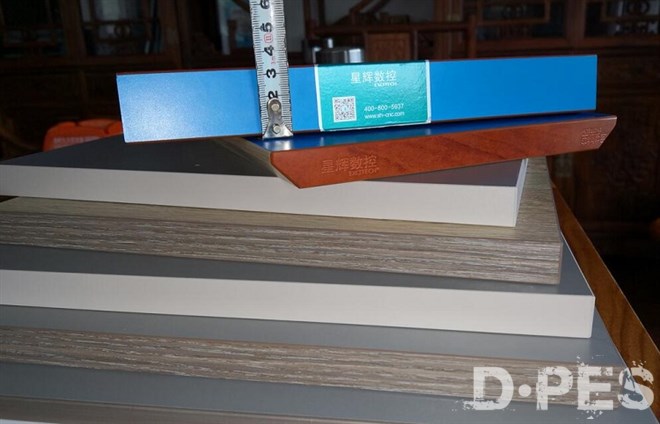

sample 2.jpg







Company Information





Company introduction

  • EXCITECH is a company specializing in the development and manufacture of automated woodworking equipment. We are in the leading position in the field of non-metallic CNC in China. We focus on building intelligent unmanned factories in the furniture industry. Our products cover plate furniture production line equipment, full range of five-axis three-dimensional machining centers, CNC panel saws, boring and milling machining centers, machining centers and engraving machines of different specifications. Our machine are widely used in panel furniture, custom cabinet wardrobes, five-axis three-dimensional processing, solid wood furniture and other non-metal processing fields.
  • Our quality standard positioning is synchronized with Europe and the United States. The whole line adopts standard international brand parts, cooperates with advanced processing and assembly processes, and has strict process quality inspection. We are committed to providing users with stable and reliable equipment for long-term industrial use. Our machine are exported to more than 90 countries and regions, such as United States, Russia, Germany, the United Kingdom, Finland, Australia, Canada, Belgium,etc.
  • We are also one of the few manufacturers in China that can carry out the planning of professional intelligent factories and provide related equipment and software. We can
    provide a series of solutions for the production of panel cabinet wardrobes and integrate customization into large-scale production.
    Sincerely welcome to our company for field visits.




Exhibition




CE certificate

CE Certification.jpg



Quality Inspection




Machining workshop

machining workshop.jpg

 We have our own machining workshop, a total of 5 gantry five-sided milling, each special machine for special use.
Side arms, beams, Z-axis skateboards, machine beds are specially processed by different equipment to guarantee high precision of the machine.

Packaging & Shipping



The cnc center is to be packed with plastic sheet for cleaning and damp proofing.

Fasten the cnc machine into the wood case for safety and against clashing.

Transport the wood case into the container.




Our Services
  • We provide 12 months warranty for the machine.
  • Consumable parts will be replaced free during the warranty.
  • Our engineer could provide technology support and training for you in your country, if necessary.
  • Our engineer could service for you 24 hours online, by Whatsapp,Wechat,QQ, or by cellphone etc.
