Home >> Products >> Digital Printers >> UV Printers >> Wit-Color hot sale Universal A0 size Flatbed Metal Wood PVC KT Glass Ceramic Acrylic All kinds of plates LED UV Ricoh Gen 5 Printer
Wit-Color hot sale Universal A0 size Flatbed Metal Wood PVC KT Glass Ceramic Acrylic All kinds of plates LED UV Ricoh Gen 5 Printer
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
Uvip 5B 1313
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 3000.00-35000.00 /
Shippment Port:
Shanghai Port
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
200 Set/Sets
Delivery Time:
Quarter
Packaging:
Standard Plywood Package for Export Packing Size: 2.96m*2.13m*1.78m G.W / N.W: 1000KG / 760 KG
Mr. Lee Leo



Send a Message to this Supplier

Product Details Company Profile

Overview
Quick Details
Color & Page:
Multicolor
Certification:
ISO9001, CE
Usage:
All advertising,decoration materials and art crafts could be printed,
Plate Type:
Flatbed Printer
Type:
Inkjet Printer
Applicable Industries:
Printing Shops, Advertising Company
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, Viet Nam, UAE
Showroom Location:
Egypt, Viet Nam
Condition:
New
Place of Origin:
China
Brand Name:
Wit-Color
Automatic Grade:
Automatic
Voltage:
220V
Dimensions(L*W*H):
2.96m*2.13m*1.78m
Weight:
G.W. & N.W.: 500kg/400kg
Warranty:
1 year
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Print Dimension:
2.5*1.3m
Ink Type:
UV ink
Key Selling Points:
Multi Color
Print Head::
RICOH GEN5 / GEN6/ KYOCERA
Printing Speed::
8 pass 60 sqm/h
Color Mode::
CMYK, CMYK+LC+LM, CMYK+LC+LM+W, CMYK+CMYK
Media Heating::
LED UV Lamp Drying
RIP Software::
Photoprint / ONYX(Optional);
Product name:
Small Flatbed UV Printer UVIP 1313 Ricoh GEN5 Printhead
Ink type:
UV ink
Supply Ability
Supply Ability:
500 Unit/Units per Year
Packaging & Delivery
Packaging Details
Standard Plywood Package for Export
Port
Shanghai

Small Flatbed UV Printer UVIP 1313 Ricoh GEN5 GEN6



Product Description

Small Flatbed UV Printer UVIP 5B1313 Ricoh GEN5 Printhead Small Flatbed UV Printer UVIP 5B1313 Ricoh GEN5 PrintheadSmall Flatbed UV Printer UVIP 5B1313 Ricoh GEN5 Printhead

WIT-COLOR LED UV SERIES
Printer Model:   UVIP 5B1313
Print Head:  RICOH Gen5
Print Width:   1.3*1.3m
Printing Speed:  Printing Mode Printing Speed
P.H.In-line Arrangement P.H.Staggered Arrangement
8PASS 40 sqm/h 60 sqm/h
6PASS 60 sqm/h 80 sqm/h
Certification:   CE, ISO;
INK:   UV INK:
Color Mode:   CMYK, CMYK+LC+LM, CMYK+LC+LM+W, CMYK+CMYK
Media Processing:   Media Spreading
Media Heating:   LED UV Lamp curing
Media Type:

 All advertising,decoration materials and art crafts could be printed,

 such as Metal Plate, Glasses, Wooden Board,

 Textile, Leather, Vinyl,  Wall Paper and mobile covers etc.

Image Format:   TIFF, JPG, EPS,PDF;
RIP Software:   Photoprint(standard) /caldera/ ONYX(Optional);
Interface:   USB3.0( Win7 )
OperatingSystem:   Win 7 Workstation
Power Supply:   AC220V, 50HZ±10%, USB is required
Power:   3700W
PC Configuattion:

 System: Windows 7

 CPU: Intel Dual Core I5  RAM: 8GB

 HardDisk: SATA 500G

 Hard Disk Format:NTFS   VGA Card:SDC ATI 1G

 CD Rom: DVD Recordable

 Space for Disk C:100G at least

Temperature & Humidity:   Temperature 20-30 ℃  Humidity 60-70%
Packing Size:   2.92m*1.96m*1.68m
G.W. & N.W.:  1000kg/760kg

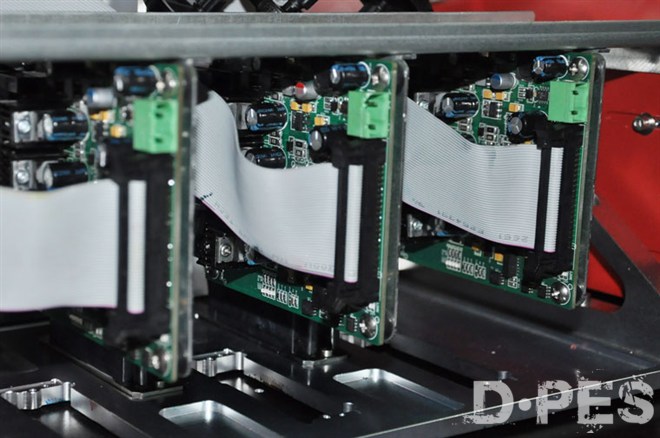

banner printhead rh5

 Click to know more informations about Printhead

App-UV flatbed

why choose us

Why Choose Us?

1.We are professional in digital printer, printing inks, and spare parts of printers.



2.We have professional engineers who have more than fifteen years experience to help you solve all kinds of questions.



3.We have good aftersale service, one year warranty, and deliver with good package and fast speed.



4.If you have any problems, our engineers can service oversea, and help you solve your questions.



5.We have a big market and a lot of customers all over the world.



6.Our annual sales are large, because we do it well.

Trade Items
Trade Items of Products



 MOQ:   1
 Package:   Standard Plywood Package for Export
 Delivery Terms:   EXW
 Delivery Times:   Within 20 working days after 100% payment was received
 Payment Type:   T/T
 Supply Ability:   500 sits/mounth
 Port:   Shanghai
 After sales Service Provided:   1. Telephone or online skype, email, wechat,etc
 2. Engineers available to service machinery overseas



Certifications

Company Information





Business Type:   Manufactory;
Location:   Shanghai, China;
Establishment:   Since 2001;
Factory Area covered:   30000 sqm
Company Certifications:   ISO 9001, CE;



Wit-Color is one of the most professional digital printing equipment manufacturers in China for over 20 years,

With independent R&D (Research And Development) center and specialized in Solvent printers with Spectra

StarFire 1024 print heads, LED UV Flatbed and Roll to Roll printers with Ricoh print heads, Eco-solvent printers with Epson print heads, Textile printers and all types inks.



There will be at least one new model launched in Wit-Color every year, now we has more than 50 series; 100 model machines, our products are still in constant innovation.



Main products:



 FUJIFILM-DIMATIX-SPECTRA

StarFire 1024 (25/10pl)



 RICOH

GEN 5, GEN6



 KYOCERA

KJ4A



 EPSON

 DX9,  DX5



 Product Line

Solvent Printers, Eco-Solvent Printers, LED UV Flatbed Printer,

LED UV Roll to Roll Printers, Textile Printers and Inks.





Contact Us

Small Flatbed UV Printer UVIP 5B1313 Ricoh GEN5 Printhead



Address: No. 1959, Shangsu Road, Qingcun Town, Fengxian District,Shanghai,                    China 201414.



Email:  marketing@ wit-color.cn

Tel: +86-21-54881966-7700

Fax: +86-21-54889946
