EXCITECH PTP wood carving cnc machining center with drilling unit
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
E3-0924
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /Set
Shippment Port:
Qingdao Port
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
200 Set/Sets
Delivery Time:
0
Packaging:
The cnc center is to be packed with plastic sheet for cleaning and damp proofing. Fasten the cnc machine into the wood case for safety and against clashing. Transport the wood case into the container.
Miss. Zou Doris



Send a Message to this Supplier

Product Details Company Profile

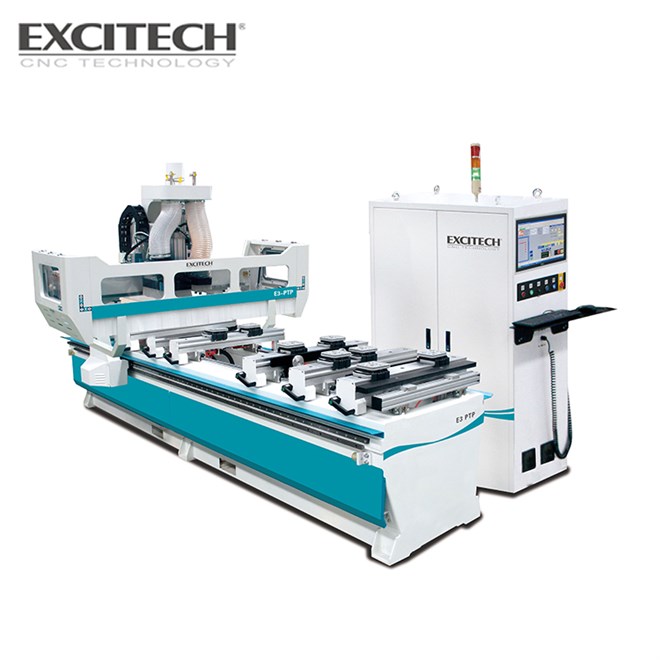

EXCITECH  PTP wood carving cnc machining center with drilling unit


Product Description

The machine is designed to meet diverse complicated processing requirements, highly versatile with routing, drilling, cutting, side milling, sawing and other functions.  Vacuum table fitted with suction cups. Cropping the full sheet to your ideal size, routing, drilling, sawing, cutting, and milling—multiple functions, all in one. Easy for loading and unloading, spend less time but get more out of it.



Technical Parameter



Series

E3-0924

E3-0930

Travelling size

1310*2720*160mm

1310*3330*160mm

Working size

900*2440*80mm

900*3050*80mm

Table size

900*2440mm

900*3050mm

Transmission

X Y rack and pinion drive , Z ball screw drive

Table structure

Pods and rails

Spindle power

5.5 KW

Spindle speed

18000r/min

Travelling speed

60m/min

Working speed

20m/min

Drill bank configuration

9 vertical+ 6 horizontal+ 1 saw blade

Driving system

Yaskawa

Controller

OSAI

Voltage

AC380/3PH/50HZ





Detailed Images

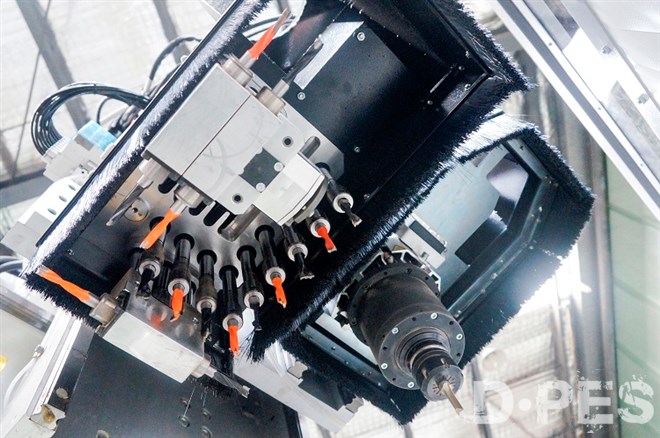

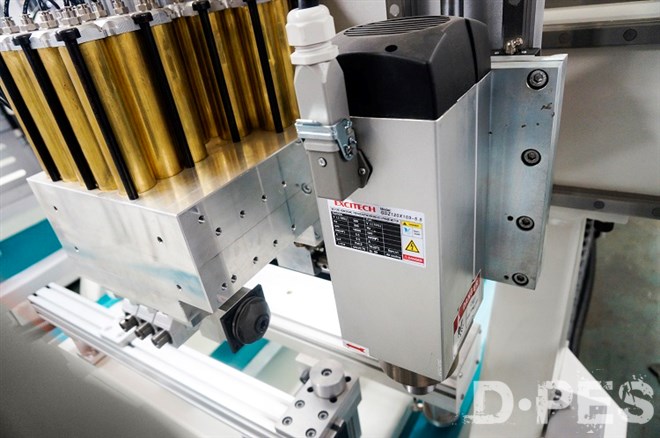

 1. Chinese spindle with boring unit

machine part 1.jpg

machine part 4.jpg



The machine adopts Chinese air cooling spindle with Italy imported drills, including 9 vertical drills, 6 horizontal drills and 1 saw blade drill, which can meet more processing requirements of users.

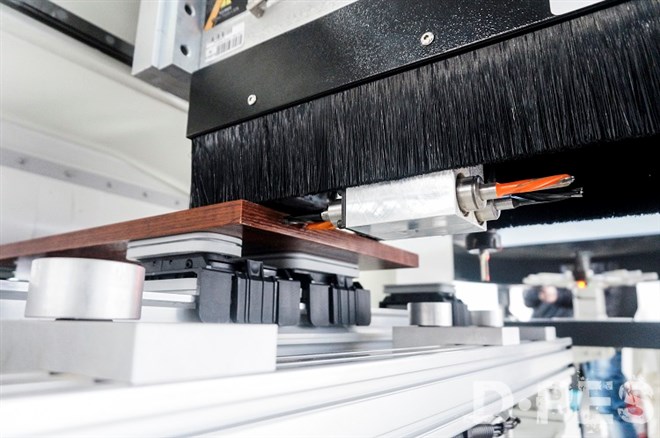

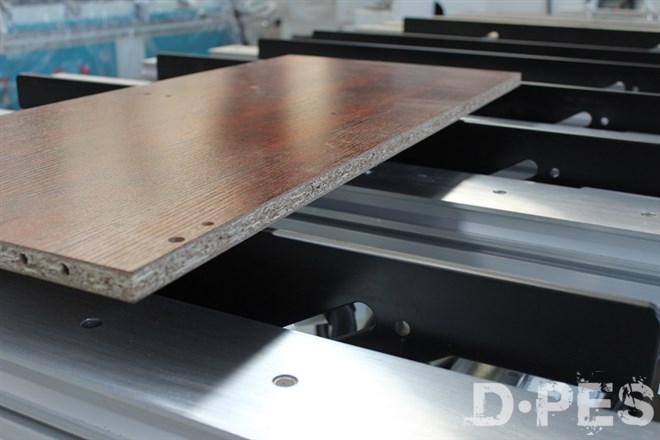

2. Double station operating area

machine part 1.jpg



The machine is equipped with a double-station operating area, equipped with 18  pieces of German Schmitz vacuum adsorption blocks and 2 rows of positioning cylinders. It can be used for full-page adsorption and point-to-point adsorption. Easy for loading and unloading, spend less time.



3. Japan Yaskawa servo motor and driver

machine part 5.jpg

machine part 6.jpg



The machine adopts Japan Yaskawa servo motor and driver, with high precision, high speed performance, strong anti-overload capability and good stability.

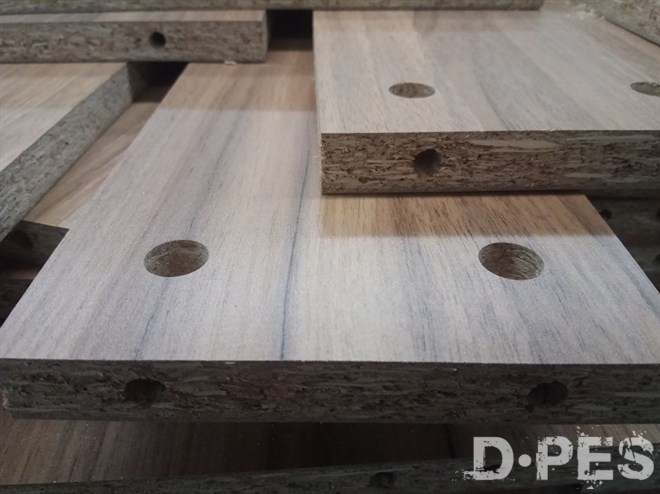

Sample

Application:

Furniture:ideally suitable for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.
Other wooden products: stereo box, computer desk, musical instruments, etc.
Well-suited for processing panel, insulating materials, plastic, epoxy resin, carbon mixed compound, etc.
Decoration: acrylic, PVC, density board, artificial stone, organic glass, soft metals like aluminum and copper, etc.





 sample 3.jpg

sample 2.jpg



sample 4.jpg



Company Information





Company introduction

  • EXCITECH is a company specializing in the development and manufacture of automated woodworking equipment. We are in the leading position in the field of non-metallic CNC in China. We focus on building intelligent unmanned factories in the furniture industry. Our products cover plate furniture production line equipment, full range of five-axis three-dimensional machining centers, CNC panel saws, boring and milling machining centers, machining centers and engraving machines of different specifications. Our machine are widely used in panel furniture, custom cabinet wardrobes, five-axis three-dimensional processing, solid wood furniture and other non-metal processing fields.
  • Our quality standard positioning is synchronized with Europe and the United States. The whole line adopts standard international brand parts, cooperates with advanced processing and assembly processes, and has strict process quality inspection. We are committed to providing users with stable and reliable equipment for long-term industrial use. Our machine are exported to more than 90 countries and regions, such as United States, Russia, Germany, the United Kingdom, Finland, Australia, Canada, Belgium,etc.
  • We are also one of the few manufacturers in China that can carry out the planning of professional intelligent factories and provide related equipment and software. We can
    provide a series of solutions for the production of panel cabinet wardrobes and integrate customization into large-scale production.
    Sincerely welcome to our company for field visits.

factory



Certificate

CE Certification.jpg



Exhibition




CE certificate

CE Certification.jpg



Machining workshop

machining workshop

 We have our own machining workshop, a total of 5 gantry five-sided milling, each special machine for special use.
Side arms, beams, Z-axis skateboards, machine beds are specially processed by different equipment to guarantee high precision of the machine.

Packaging & Shipping



The cnc center is to be packed with plastic sheet for cleaning and damp proofing.

Fasten the cnc machine into the wood case for safety and against clashing.

Transport the wood case into the container.




Our Services
  • We provide 12 months warranty for the machine.
  • Consumable parts will be replaced free during the warranty.
  • Our engineer could provide technology support and training for you in your country, if necessary.
  • Our engineer could service for you 24 hours online, by Whatsapp,Wechat,QQ, or by cellphone etc.
