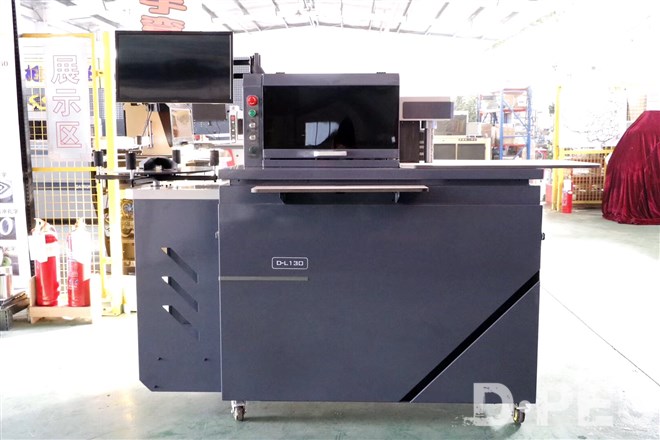

CNC CHANNEL LETTER BENDING MACHINE
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
L130
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 3500.00-4500.00 /Case
Shippment Port:
QINGDAO
Payment Terms:
T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
20 Set/Sets
Delivery Time:
Packaging:
PLYWOOD CASE 1.7M*0.8M*1.75M
Mr. zhuang jiantao



Send a Message to this Supplier

Product Details Company Profile

Working Principle

Auto Feeding, Auto Slot, Auto Bending

Application Material

Aluminum profile, flat aluminum, channelume

Slot Degree

45°-135°(No limit for flat materials)

Material Width

≤130mm

Bending Radius

≥5mm

Material Thickness

0.3-1.2mm

Total Power

1000W

Machine Size

2000mm*830mm*1450mm

Weight

200KG

Voltage

220V

Packing

250KG/1.7m*0.8m*1.75m

Air Pressure

0.3-0.8MPa

Note:

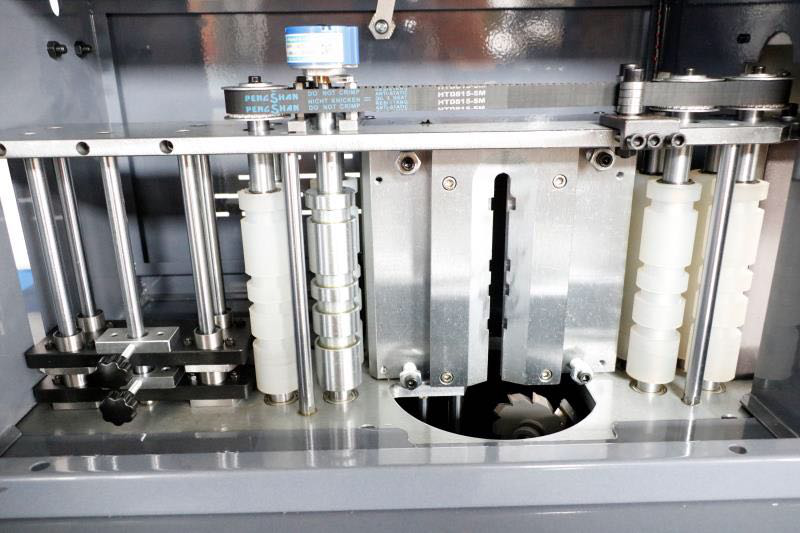

1. Stable cutting, and bending with Five Axis construction---

Feeding, lifting, cutting, and bending one time molding, to ensure

accurate and stable.

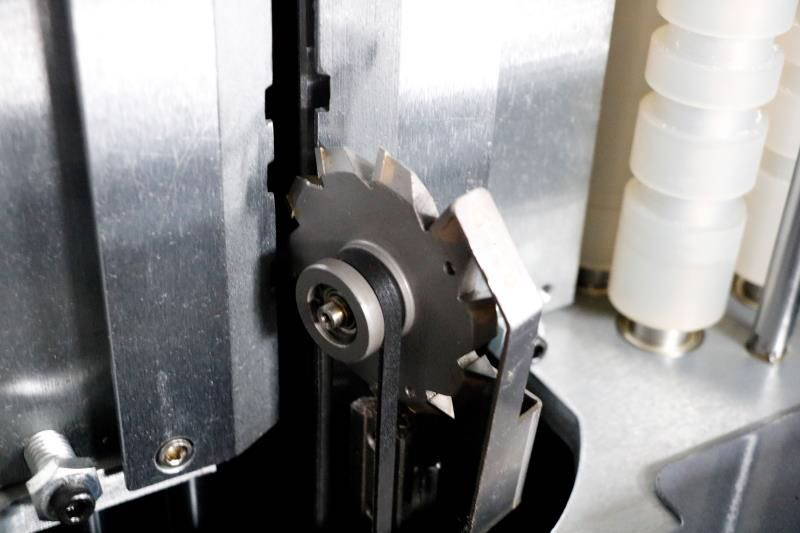

2. With brushless DC cutting motor, adjustable speed, suitable for various materials.

3. With the closed loop self-test system, the whole deviation is less than 0.1mm comparing with the file. High precision.

4. Imported side rails positioning cutting, to ensure the cutting stability.

5. Curved arc is rebound coefficient intelligent compensation, to ensure the accuracy of various material forming.

6. Professional for outdoor and indoor advertising letters, signs and lamp house, like LED aluminum words, metal words, rimless words, the resin letters and side luminous letters.

7. One-button operation, very easy to use. Cost-effective, stable cutting, low noise
