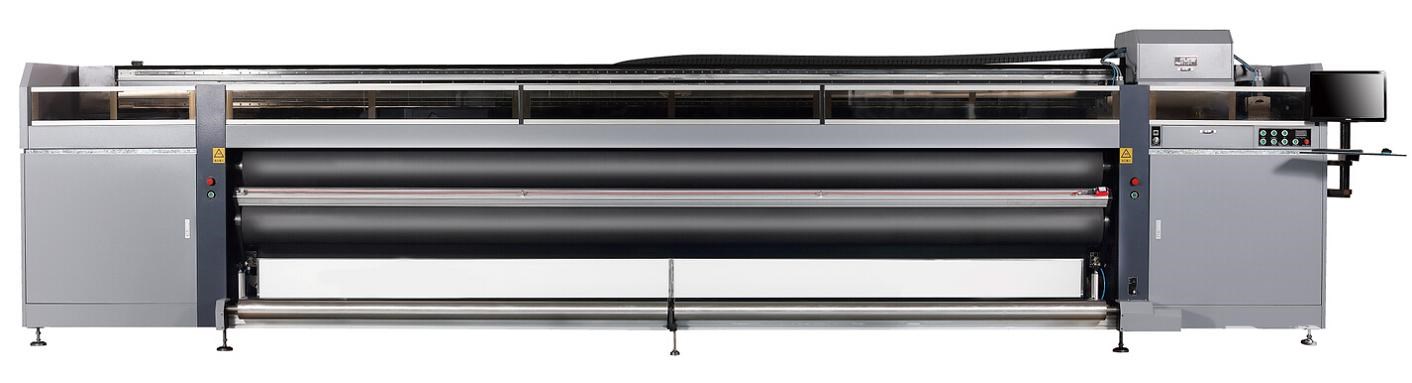

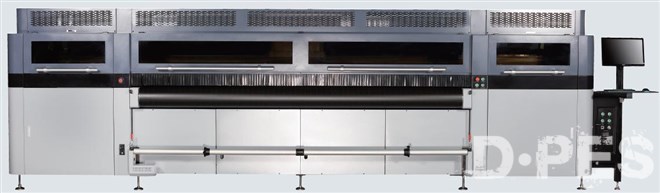

UV Hybrid digital Printer

Dual-purpose, high reliable, cost-efficiency, and easy operation

  • 600dpi physical resolution, high speed industrial printhead help achieve 1800dpi printing output quality
  • Capable to print on both soft and rigid materials
  • Maximum 3200 mm printing width
  • Maximum material thickness up to 120 mm
  • Speed up to 120 m2/h

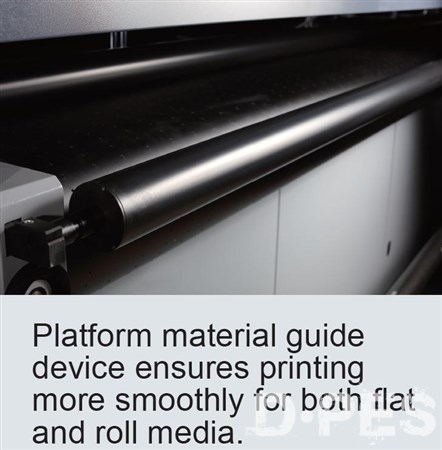

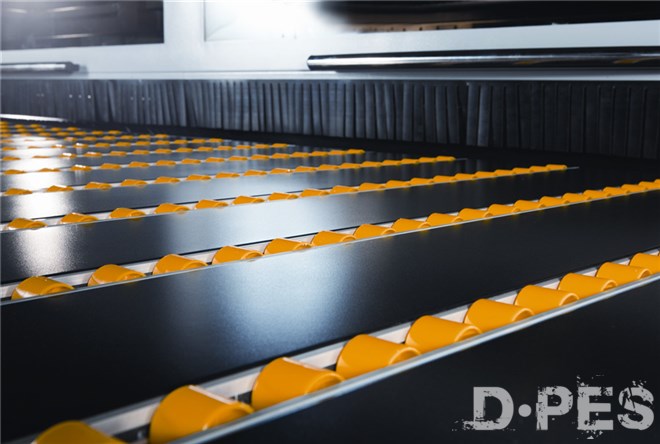

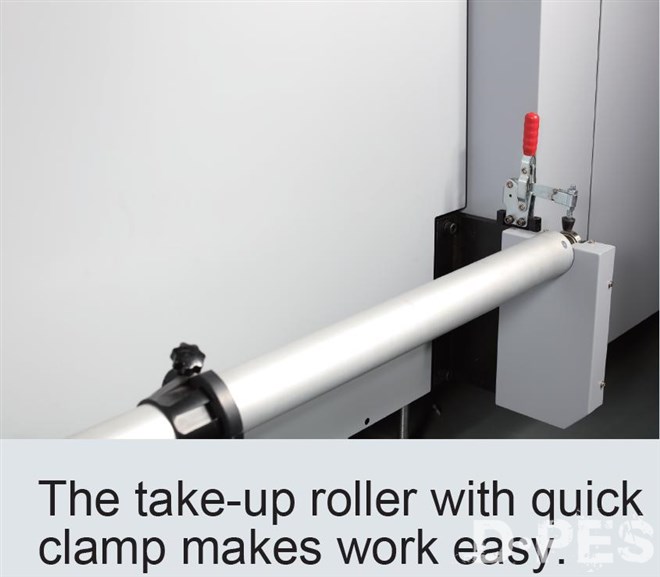

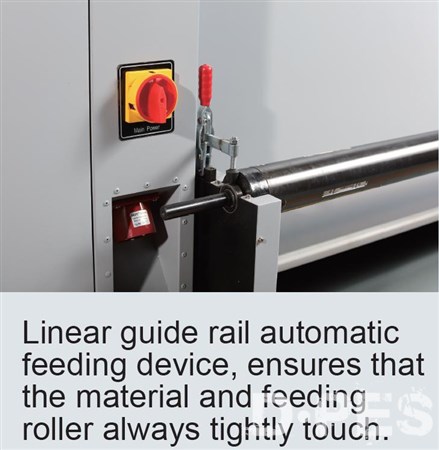

  • Specially engineered for printing of high-quality flat and roll-to-roll materials.Using a constant tension control on roll material printing, to ensure feeding system stable, reliable and stepping accuracy.Using double feed pressing roller and the printing plate anchor device on sheet material printing, to ensure the reliable positioning of printing process and seamless vacuum adsorption.
  • The platform adopts constant pressure adsorption control technology, preventing the material jitter effectively .
  • Using multifunctional carriage control technology, to ensure the printing operation safely, and conveniently.Automatic height measurement function, regardless of changes in material  thickness,ensure perfect and consistent height gap between the nozzle and material.Integrated double switch anti-collision technology, protect machine and operation.
  • Complete inking system, ensure the printing is clean and safe.Nozzle cleaning function, can easily complete to clean nozzle by flush fluid without removing the nozzle.
  • Sub-ink tanks with constant temperature control, ensure perfect and consistent ink features in different environment.Ink power-off protection function, avoid ink leakage after sudden blockout.The ink system adopts premium high precision filter, which provides the clean and pure ink for print head.
  • High precision metal raster, high performance AC servo motor, and high precision closed loop control, ensures precise movement of the carriage.
  • High precision of electric negative pressure system, (resolution 0.01KPa), reduces the use of compressed air for more than 95%, reduces the starting frequency, improves the service life of the air compressor.
  • The world's premium chain solutions, reduce the cable motion fault to zero.
  • Specifications
    Print size3200mm
    Print headKyocera   6+1
    Print modeHigh speed mode    600×900dpi      120m2/h
                           Production mode     600×1200dpi      90m2/h
                           Fine mode               600×1800dpi      60m2/h
                         Photograph mode   1200×1200dpi    45m2/h
    Print mediaSheet material and roll material
    (glass, wood, bamboo, ceramic tile, organic glass plate, metal plate, leather cloth, acrylic board, PVC board, reflective film, canvas, rubber, crystal, carpet, marble, corrugated board, banner,etc.)
    Media thickness ≤120mm
    InkCMYKLcLm
    Special InkUV white ink
    Data interfacePCIE
    Power35A/380V
    Size bared machineL 6000mm*M 1410mm*H 1865mm

    Weight: 2170KG

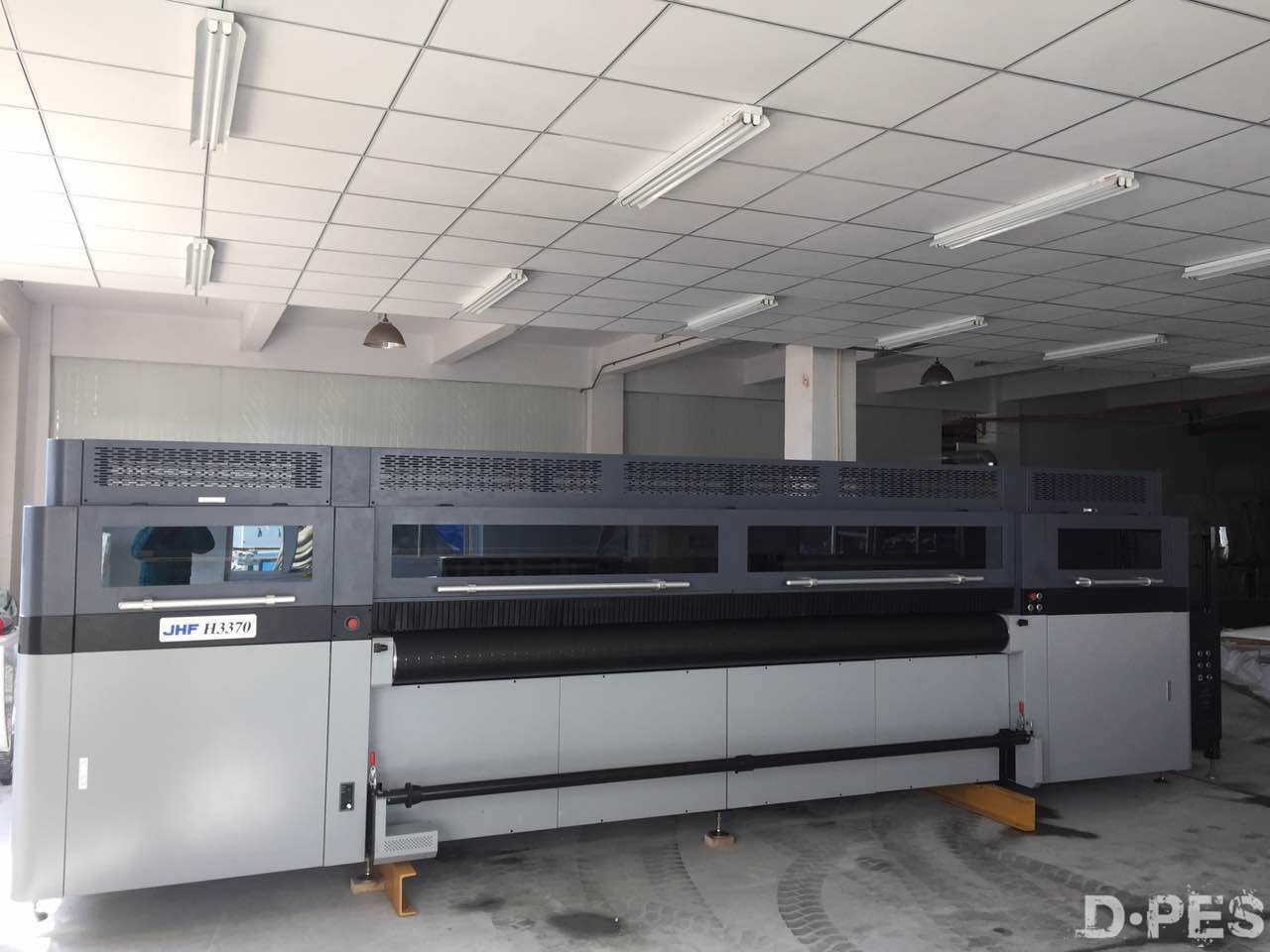

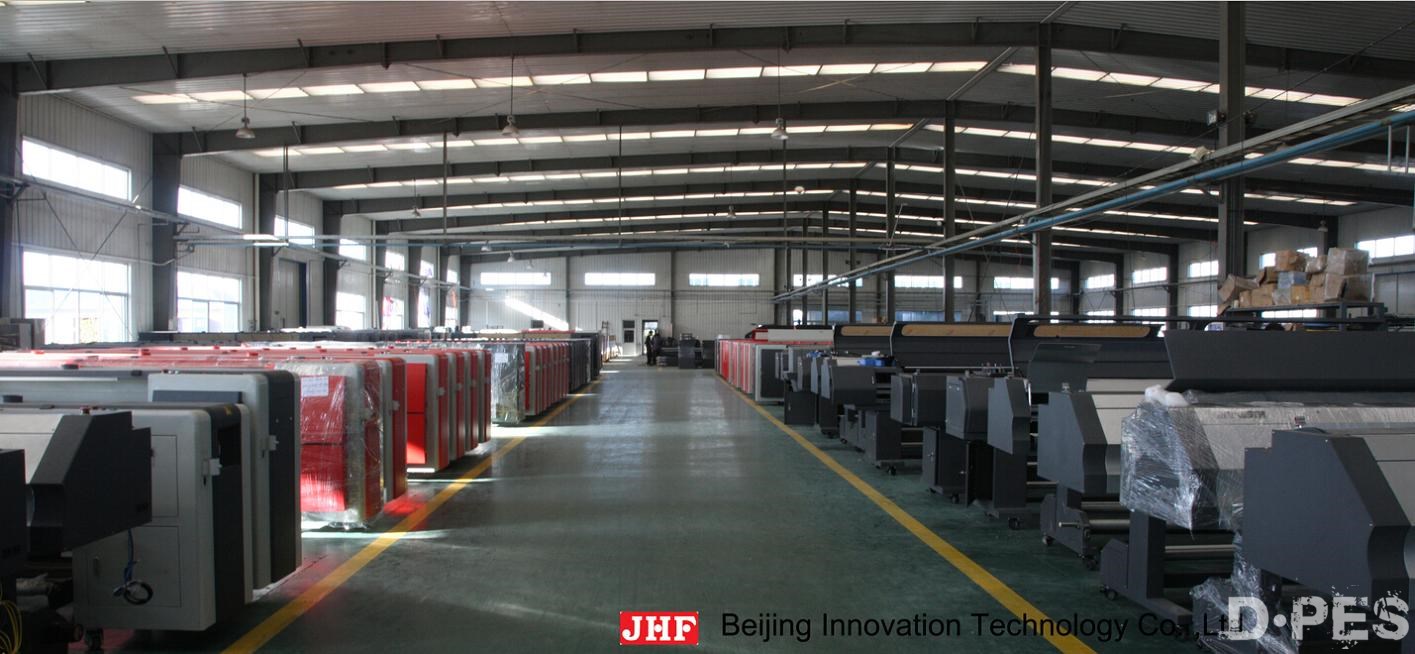

    Factory photos

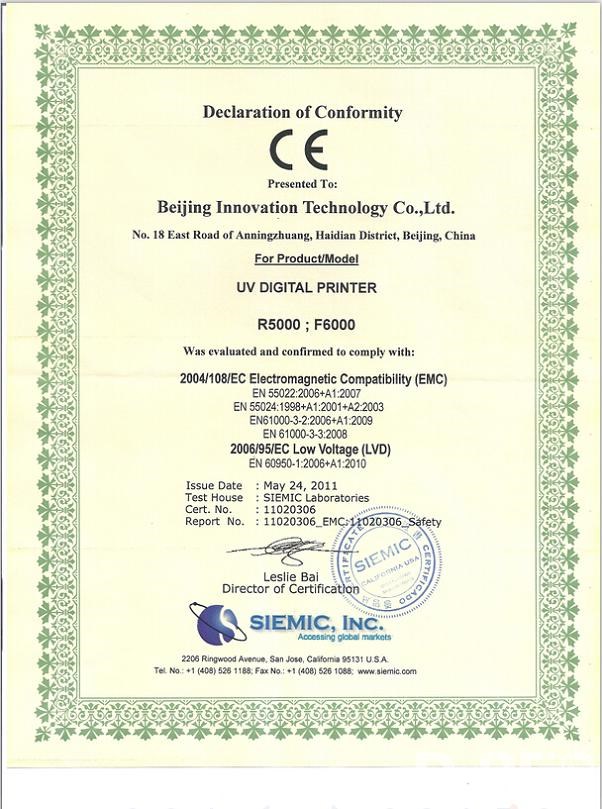

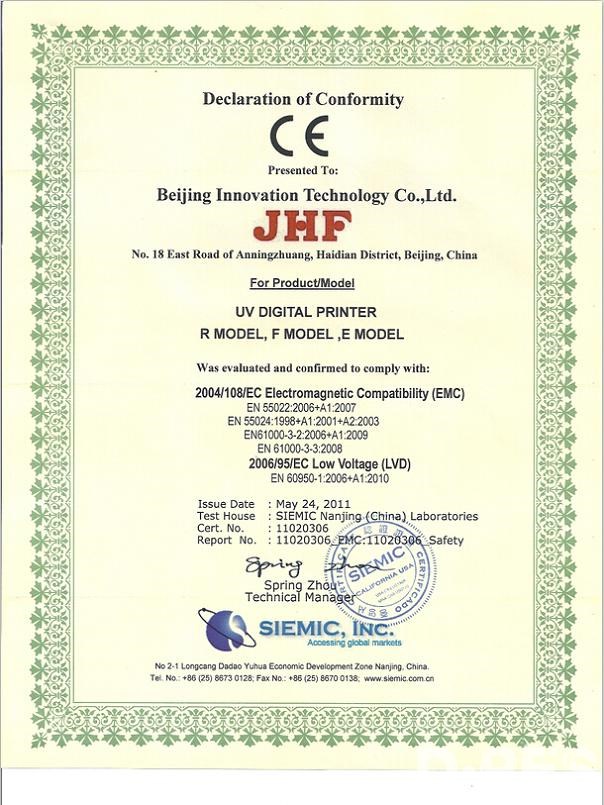

    Certificates
