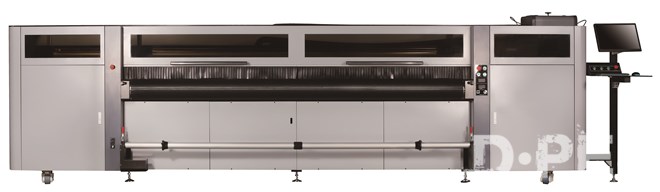

M3300 Hybrid Digital Printer 3.2m Large Format
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Unit/Units
Place of Origin:
Min. Order:
125
FOB Price:
0.00-0.00 /
Shippment Port:
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
1000 Unit/Units
Delivery Time:
Week
Packaging:
Ms. Beijing innovation technology co.,ltd JHF



Send a Message to this Supplier

Product Details Company Profile

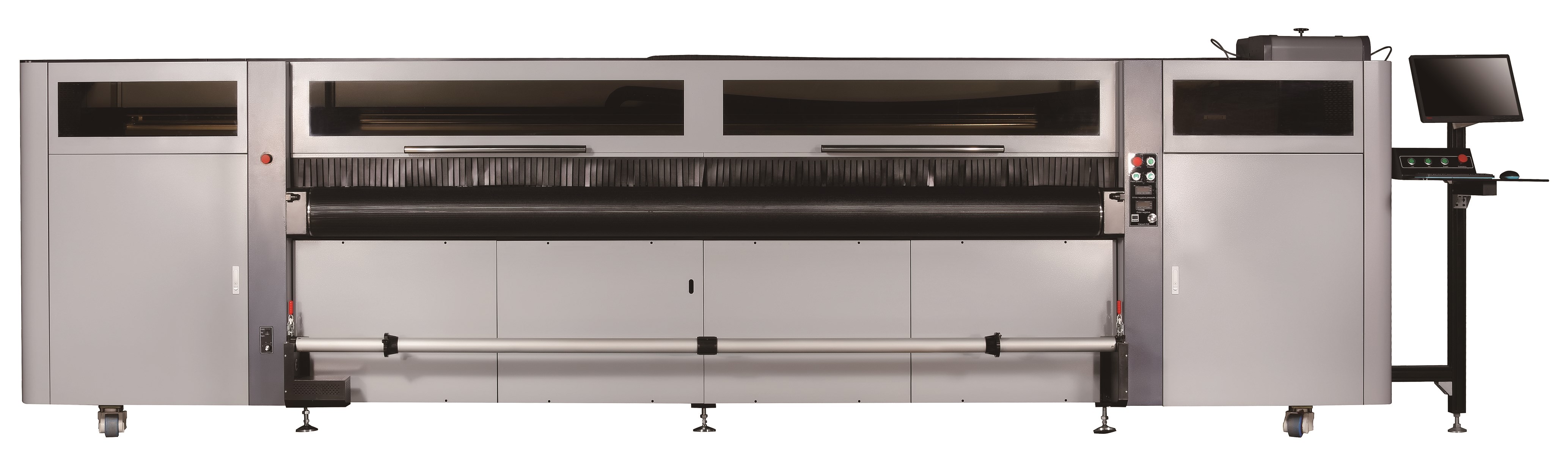

M3300  Industrial Roll to Roll and Flatbed Hybrid UV Digital Inkjet  Printer Printing Machine


One machine for easy printing

It also has the UV printing function of Roll and plate, which can print flexible materials such as advertising cloth, reflective film, and also print plates such as glass and ceramic tiles.


High precision
High stability

It adopts imported high-precision grating scale and high-performance servo motor, high-precision closed-loop control and precise stepping.

The high-precision electric negative pressure system has a resolution of up to 0.01KPa, which effectively reduces the use of compressed air by more than 95%, reduces the frequency of starting, and improves the service life of the air compressor.


High precision
High stability

It adopts imported high-precision grating scale and high-performance servo motor, high-precision closed-loop control and precise stepping.

The high-precision electric negative pressure system has a resolution of up to 0.01KPa, which effectively reduces the use of compressed air by more than 95%, reduces the frequency of starting, and improves the service life of the air compressor.

Precise positioning, stable and reliable
- Coil printing uses constant tension control to ensure stable and reliable step accuracy.

- The plate printing uses double nip rolls and positioning devices to ensure reliable positioning and seamless adsorption of the plates during printing.

- The platform uses constant pressure adsorption control technology to effectively prevent material shake.




M3300 Industrial Hybrid UV Inkjet Printer Specification


Printhead Konica KM1024i(6+1)  Speical Ink White Ink Max Width 3200mm Data Interface PCIE Ink type  6 colors UV ink   Machine size    6330mm*1640mm*1570mm Printing Mode 4 Pass 720*720dpi       Negative pressure system independent negative pressure system 6 Pass 720*1080dpi     8 Pass 720*1440dpi    Print Material Soft & Rigid Material: glass,wood,bamboo,ceramic tile, organic glass plate,metal plate, leather cloth, acrylic board, PVC board, reflective film, canvas, rubber, crystal, carpet, marble, corrugated board banner, etc. Machine power 380V / 50~60Hz / 11.5KW / 18A  Media Thickness ≤120mm Machine Weight 1950KG Motor system Panasonic motor



 M3300 Industrial Roll to Roll & Flatbed Hybrid Inkjet Application

Glass, wood board, ceramic tile, metal board, Alec board, Chevy board, crystal, marble, corrugated board.Flexible materials: single permeable film, cloth, wallpaper, leather, advertising cloth, reflective film, canvas, carpet, curtain cloth and other flexible materials.
