UV M8 Flatbed printer machine
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
UV M8
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /
Shippment Port:
SHANGHAI
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
1000 Set/Sets
Delivery Time:
Year
Packaging:
standad wood packing
Mr. DOCAN DOCAN



Send a Message to this Supplier

Product Details Company Profile

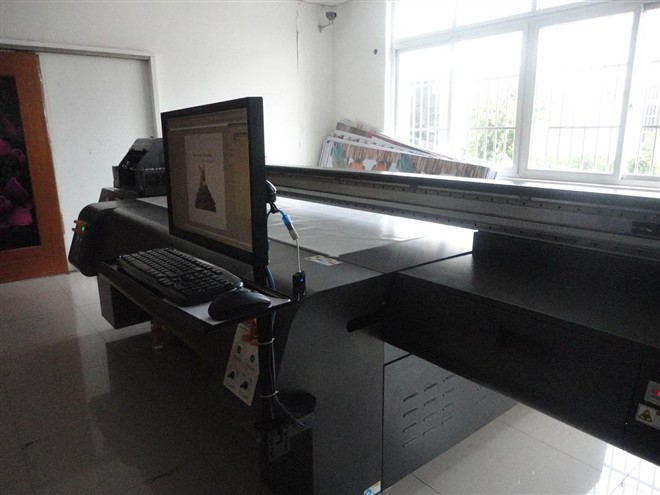

Docan uv flatbed glass printer uv2518

Specification
1) UV Inkjet Flatbed Printer
2) Konica Minolta printhead
3) 360dpi*360dpi-1440dpi*1440dpi
4) C,M,Y,K or C,M,Y,K,LC,LM + White colors
5) CE Certificate



Perfect Quality Along With Competitive Price
Since we are a few manufacturers of UV inkjet flatbed printer in China with many years production experience, we can provide the printer with excellent performance & direct price. You will enjoy our one-stop survice.



Higher Speed Plus Higher Resolution
Konica printhead with 512-14PL/42PL nozzle is used to support you with high speed printing and higher resolution(Max resolution can be up to 1440dpi*1440dpi



Ideal Transmission System
USB optical transmission, interference, to avoid printing garbage.



More Application
Application areas includs:Decoration industry, glass industry;Sign industry;Exhibition industry;Leather textile printing industry, and so on.
Printed materials could be:Glass, ceramic tile, ceiling, aluminum sheets, wooden sheets, billboards, acryl sheets, KD board, Plexiglas, foam board & flexible media like wall paper, glistening film, canvas, carpet, leather, paper sheets, etc.



Technical Data

General

Info

Model

UV2518

Print Technology

Drop-on-demand Piezo Electric

Printhead Type

JAPAN KM-512-14PL / KM-512-42PL

Printhead No.

4/5/6/7/8/10/12/15/16 pcs

Printhead Controls

Print head temperature & voltage are adjustable by software

Printing Size

2.44m x 3.0m

Ink Characteristics

UV curing ink

Ink Reservoir

Refillable on the fly while printing/1000ml

Loating Mode

Resto/Servo

RIP Software

Photoprint 6.0

Drying System

UV lamp

File Format

TIFF, JPEG, Postscript 3, EPS and PDF

Resolution

360 dpi x 360 dpi      360 dpi x 720 dpi

720 dpi x 360 dpi      720 dpi x 720 dpi

720 dpi x 1440 dpi     1440 dpi x 1440 dpi

Printing Speed

In draft mode up than 28 sq.m ( 4 heads )

In standard mode up than 18 sq.m ( 4 heads )

In high resolution mode up than 11 sq.m ( 4 heads )

Ink

Ink Type

UV curing ink

Ink Color

4 colors (C, M, Y, K) - 7colors (C, M, Y, K, LC, LM + W)

Printing Assistant System

Printing Materials

(1-50mm thickness)

Glass, ceramic tile, ceiling, aluminum sheets, wooden sheets, billboards, acryl sheets, KD board, Plexiglas, foam board & flexible media like wall paper, glistening film, canvas, carpet, leather, paper sheets, etc.

Heating System

Standard (Front heater, Rear heater, Fan)

Color Retains

Outdoor 2 years, indoor 7 years

Color Management

ICC based color, adjustment curves, density adjustment

Printer profile

Power Supply

AC220V  50/60HZ (10%)  16A

Working Conditions

Temperature 20-28 degrees, Humidity 40% - 60%

Dimensions

3.75*2.16*1.33m

Weight

1450kgs

Packing

Outside packing : Packed by solid wooden carton

Inner packing: sealed with anti-rain & rust plastic bubble film
