| General info |
Model |

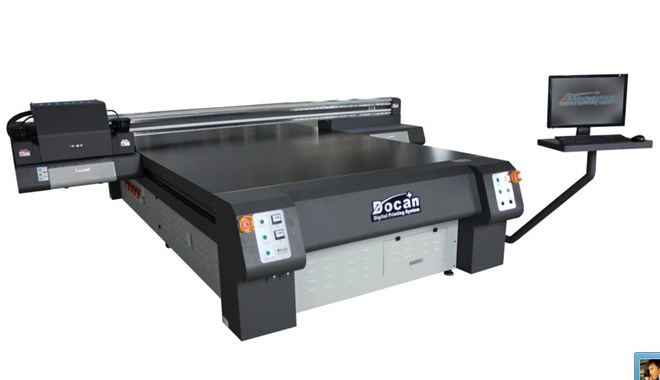

Docan M10 |
| Print technology |
Drop-on-demand Piezo Electric |
| Working platform |
Vacuum or up-down wheels table |
| Printhead type |
KM1024-14PL |
| Printhead No. |
4/5/6/7/8/10/12/15/16 |
| Printhead control |
Print head temperature & voltage are adjustable by software |
|
| Printing size |
2.05*3.2m |
| Media thickness |
1-100mm |
| Ink reservoir |
Refillable on the fly while printing/1000ml |
| loating mode |
Resto/Servo |
| Drying system |
UV lamp |
| RIP software |
Photoprint/ONYX/Caldera |
| File format |
TIFF, JPEG, Postscript 3, EPS and PDF |
| Resolution |
720dpi*720dpi(4pass) |
| 720dpi*1080dpi(6pass) |
| 720dpi*1440dpi(8pass) |
| Printing speed |
In draft mode up than 25 sq.m |
| In standard mode up than 20 sq.m |
| In high resolution mode up than 16 sq.m |
| Ink |
Ink type |
UV curing ink |
| Printing color |
CMYK, LC, LM, W,Varnish(4,5,6,7, 8,double 4 colors) |
| Printing Asistant System |
Printing media |
Glass, ceramic tile, ceiling, aluminum sheets, wooden sheets, billboards, acryl sheets, KD board, Plexiglas, foam board, also flexible media like wall paper, glistening film, canvas, carpet, leather, paper sheets, etc. |
| Heating system |
Standard(Front heater,rear heater,fan) |
| Color retains |
Outdoor:2 years indoor:7 years |
| Color management |
ICC international standard, adjustment curves, density adjustment |
|
| Printer info |
Power supply |
AC220V-240V 50/60HZ (10%) >30A |
| Working conditions |
Temperature 20-28°C |
| Humidity 40% - 60% |
| Warranty period |
One year |
| Dimension |
4.8*3.93*1.38m |
| Weight |
2160kg |
| Packing details |
Outside packing : Packed by solid wooden carton |
| Inner packing: sealed with anti-rain & rust plastic bubble film |
